| Estatus: | CERRADO | | Id# | 19783 | | Ref: | 10320 | | Nombre: | AMADA FO MII RI 3015 LASER | | Fabricante: | Amada | | Modelo: | FO MII RI 3015 | | Año: | 2012 ( Usado ) | | Localización: | USA | | Precio: | | | | | |
|---|

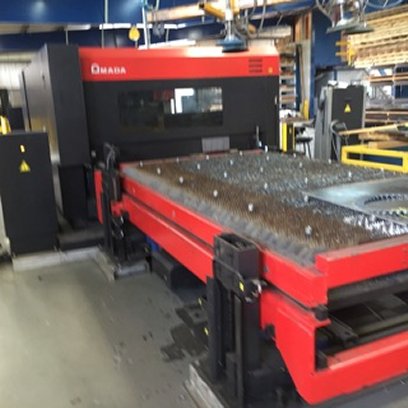

| Descripción: | 4000 WATT AMADA FO3015MII RI LASER CUTTING SYSTEM WITH ROTARY INDEX
MFG:2012 - 10,300 HOURS
Specs:
MOTION PACKAGE
TRAVEL METHOD: X&Y AXIS BEAM MOVE
DRIVE METHOD: X RACK & PINION - Y & Z BALL SCREW
WORK AREA: X=121\" (3070MM), Y= 61\" (1550MM), Z=7.87\" (200MM)
MAXIMUM THICKNESS: 7/8\" MILD STEEL, 1/2\" STAINLESS STEEL, 3/8\" ALUMINUM
MAXIMUM WORK WEIGHT: 2000 LBS
RAPID TRAVERSE: X,Y = 3150\"/ MIN. SIMULTANEOUS = 4,455\"/MIN. Z=2,362\"/MIN.
REPEATABILITY: +0.0002\"
Z-AXIS SENSOR: HS-2010
CNC: AMNC-PC - OS: WINDOWS EMBEDDED
ASSIST GAS CONTROL: DIGITALLY CONTROLLED
OSCILLATOR: AF4000IB - 4000WATT
APPROXIMATE MACHINE WEIGHT: 34,216 ILBS (INCLUDES SHUTTLE TABLE)
POWER REQUIREMENTS: 200/220V + 10% 50/60HZ
CNC CONTROLLER
MODEL: AMNC-PC
DISPLAY: LCD COLOR GRAPHICS DISPLAY
CONTROL FUNCTION: X,Y,Z-AXIS SIMULTANEOUS AND FOCUS LENS B-AXIS, ADAPTIVE
OPTIC AND LASER POWER CONTROL (CW, GATED PULSE, PIERCE ROUTINES ETC)
DATA INPUT METHOD: TOUCH SCREEN, KEYBOARD, ETHERNET, WIRELESS, CD, USB, 3 1/2\"
FLOPPY DISK.
MINUMUM COMMAND UNIT: 0.0001\" (X,Y,Z)
MINUMUM TRAVEL UNIT: 0.0001\" (X,Y,Z)
STANDARD MEMORY: 2MB
HARD DRIVE: 10 GB
OPERATING MODES: AUTOMATIC AND MANUAL
DISPLAY MODES: PROGRAM CONTENTS, POSITION INFORMATION, PROGRAM CHECK,
SETTINGS, PARAMETERS, BEAM DIAMETER COMPENSATION, ASSIST GAS STATUS, DELF
DIAGNOSTICS.
INTERLOCK DISPLAYS: COOLING WATER STATUS, GAS PRESSURE STATUS, VACUUM STATUS,
TURBO BLOWER MALFUNCTION, SHUTTER STATUS, BEAM POWER, RESONATOR DISCHARGE,
DOOR OPEN, W/ACS.
ELECTRICAL REQUIREMENTS: SEE MOTION PACKAGE.
DESCRIPTION
TUBE SHAPES: ROUND, SQYARE, RECTANGULAR, ANGLE AND CHANNEL
ROUND TUBE: 3/4\" (19MM) - 8.66\" (220MM)
SQUARE TUBE: 3/4\" (19MM) - 6\" (150MM)
RECTANGE: 8.66\" (220MM) (DIAGONAL)
ANGLE: 3.54\" (90MM) X 3.54 (90MM)
CHANNEL: 6\" (150MM) WIDE
MAXIMUM WEIGHT: 44LBS (200KG)
MAXIMUM TUBE LENGTH: 236.2\" (6000MM) (19.6\' - WITH ONE REPOSITION)
ROTATION SPEED: 100 RPM
DUST COLLECTION: AUTOMATIC SWITCHING FOR TUBE LENGTH UP TO 236\" (6000MM)
SCRATCH PREVENTION: CONTROLLABLE PNEUMATIC CHUCK AND ALUMINUM ROLLER
|
|---|
|
|---|
| |
| |
|
|
|
|
|
|
