TRUMPF TRULASER 5000 WATT, 5\' x 10\' ,MFG:2012 10000 LASER ON & 6000 BEAM ON | |
| Estatus: | CERRADO | | Id# | 19750 | | Ref: | 10278 | | Nombre: | TRUMPF TRULASER 5000 WATT, 5\' x 10\' ,MFG:2012 10000 LASER ON & 6000 BEAM ON | | Fabricante: | TRUMPF | | Modelo: | TRULASER 5000 (STK 10278) | | Año: | 2012 ( Usado ) | | Localización: | USA | | Precio: | | | | | |
|---|

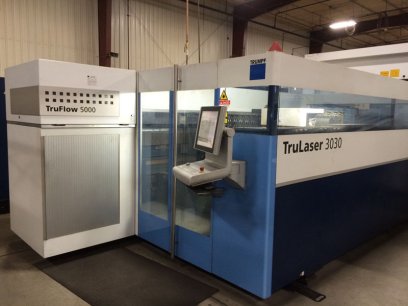

| Descripción: | 5000 WATT TRUMPF TRULASER 3030 LASER CUTTING SYSTEM W/SIEMENS CNC CONTROL LASER \"ON\" HOURS:10000 - LASER \"BEAM\" HOURS:6000
MFG:2012
Specifications:
Working range:
X axis 3000 mm (10\')
Y axis 1500 mm (5\')
Z axis 115 mm (5\")
Maximum material thickness with TruFlow 5000:
Mild steel 25 mm (1\")
Stainless steel 20 mm (7/8\")
Aluminum 12 mm (1/2\")
Maximum simultaneous axis speed: 140 m/min (~ 5500 IPM)
Machine weight: 14000 kg (30,865 lbs)
Standard features:
-Closed machine frame with integrated laser unit
-Motion unit for high precision processing
-Torque drive in combination with direct linear drives
-Enclosed beam delivery system
-Single cutting head strategy
-Chiller
-Automatic pallet changer in longitudinal direction
-Conveyor belt for small parts
-17\" touch screen
-Work area lighting
-Positioning laser diode
-PierceLine
-FocusLine
-NitroLine
-PlasmaLine
-Workshop programming
-Tropical version
-Preparation for air cutting
Additional features:
LiftMaster Prep
Tech package w/automated lens & nozzle
Trumpf laser:
-TruFlow 5000 with optimized standby incl. beam tube ventilation with N2
-Maintenance-free radial turbine blower
-Radio-frequency excitation
-Laser control TASC 3
-Laser power control
-Logbook function laser
Cutting head:
-LensLine
-Laser cutting head with 250 mm lens
-Universal quickchange device for cutting head (UTI)
-ControlLine
Control:
-Control model is Sinumerik 840D SL
-Technology data is integrated
-Automatic shut-down device
-Production plan
-Programmable cutting gas pressure
-SprintLine
-ContourLine
-Microweld
-FastLine
-FlyLine
-AdjustLine
-Teleservice
-Diagnostic functions
Data transmission:
-USB-interface
-RJ45 network connection
Safety:
-CE label
-Light barriers
-Monitoring system
-Multi chamber exhaust system
-Compact dust extractor
-Machine enclosure with Macrolon panels
Installed configuration:
Voltage 460V
Frequency 60 Hz
Electrical standard JIC/NEC
Color standard white-blue
Product color A- RAL-Design 250 20 20 blue
Product color B-NCS S 0505 R80B-white |
|---|
|
|---|
| |
| |
|
|
|
|
|
|
Que aparecen en esta página TRUMPF TRULASER 5000 WATT, 5\' x 10\' ,MFG:2012 10000 LASER ON & 6000 BEAM ON tiene la condición de "CERRADO", lo que significa que el presente anuncio de venta ya NO es válido.
Sin embargo, con la tecla "CONTACTO con el Vendedor", usted puede pedir al vendedor, que podría tener que vender TRUMPF TRULASER 5000 (STK 10278).
Si usted no puede encontrar la máquina que está buscando -
suscribirse a la MachineKs.com y lugar GRATIS Anuncio de compra.
Si usted tiene equipo para la venta - el categoría Lasers junto con una TRUMPF TRULASER 5000 (STK 10278) en la lista, es sólo una entre cientos de otros, donde en pocos minutos publique sus anuncios de venta. |
|---|
|
|
|
