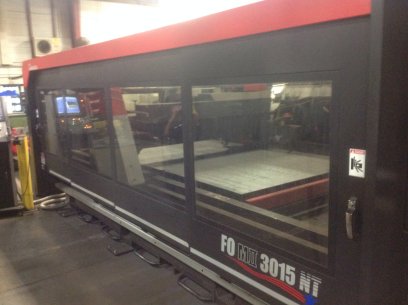

4000 WATT AMADA FOM2 3015NT LASER MFG:2013 - 12,500 HOURS - UNDER POWER IN PLANT | |
| Estatus: | CERRADO | | Id# | 19743 | | Ref: | 10268 | | Nombre: | 4000 WATT AMADA FOM2 3015NT LASER MFG:2013 - 12,500 HOURS - UNDER POWER IN PLANT | | Fabricante: | AMADA | | Modelo: | 3015NT (STK 10268) | | Año: | 2013 ( Usado ) | | Localización: | USA | | Precio: | | | | | |
|---|
| Descripción: | 4000 WATT AMADA FOM2 3015NT LASER
MFG:2013 - 12,500 HOURS - UNDER POWER IN PLANT
Travel Method X & Y - Axis Beam Move
Drive Method X Rack & Pinion - Y & Z Ball Screw
Work Area :
X: 121 (3070mm)
Y: 61 (1550mm)
Z: 7.87 (200mm)
Maximum Thickness:
7/8 Mild steel
Stainless Steel
3/8 Aluminum
Maximum Work Weight: 2,000 lbs.
Rapid Traverse X & Y: X, Y = 3,150/min. Simultaneous = 4,455/min.
Z: Z = 2,362/min.
Repeatability: +0.0002
Z-Axis Sensor: HS-2007
CNC AMNC-PC - OS: WINDOWS EMBEDDED
Assist Gas Control Automatic Select
Oscillator AF4000iB - 4000 watt
Approximate Machine Weight 34,216 lbs. (includes shuttle table)
Power Requirements 200/220V 10% 50/60Hz
- Maximize utilization with minimal setup between jobs
- High speed processing of thin and thick materials
- Operator-friendly windows-based network compatible control
- Performance-proven rack and pinion drive system in the X-axis and high-
precision ball screws in the Y and Z axis
- High-speed shuttle table design improves overall machine utilization by
externalizing the material setup process
- Cast iron frame for superior stability
- Water Assisted Cutting System (WACST) uses an adjustable water mist to
absorb heat generated by the cutting process
- Cut Process Monitoring for automatic pierce detection as well as plasma
detection for thick stainless steel and aluminum
- SFP (Spatter Free Pierce) function for cleaner high-speed piercing in thicker material
- Interlocked enclosure surrounds cutting area to ensure safety
- Amada/FANUC RF excited resonator provides unmatched performance and
reliability
- Automation ready |
|---|
|
|---|
| |
| |
|
|
|
|
|
|
