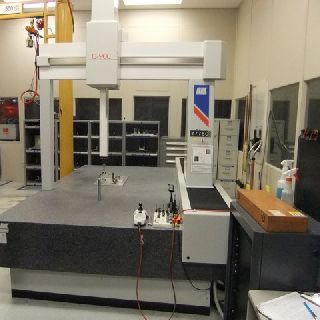

Nikon LK Coordinate Measuring Machine
Model: G90-C 20.12.10, S/N:G90C154573/02
New: 2002, Rebuilt: 2012
Specifications:
Measuring Range:................................ X =80", Y=48", A=40"
Granite Table:.................................. 119" L x 61.5" W x 15.75" Thick
Minimum Air Pressure:........................... 6.17 bAR,90 LbF/sq in
Air Consumption:................................ 3 Cu Ft/Min
X-Axis Drive System:............................ LK300N Friction Reduction
Overall Machine Size:........................... 127" L x 79" W x 91"h
Sitting on 6" Blocks
24" L x 24"W x 41" H
Renishaw Probe Head Controller
Equipped with:
Updated 2012- New Computer Hardware and Software
Nikon Camio 7.0 Software
Renishaw Motorized Probe Model PH10M
Joy Stick Control
Renishaw Probe Head Controller Model:PHC10-2
Lenovo S20 Computer, Dell Keyboard & Monitor
All Bearings on All Axes
Air Counterbalance to the Quill Spere
Probe Stand with Probes
Hand Held Probe Controller
Air Regulator & Filter
Precision Leveling Pads
Fedders Portable Air Conditioner with Remote
Prepared for shipiment by RFM, Inc. (Resources for Manufacturing) Dayton, Oh
