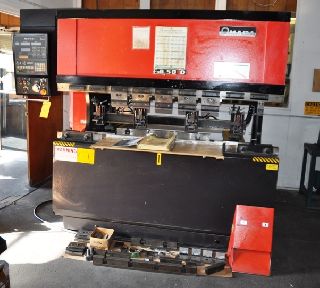

Specifications:

Capacity, US tonnage ........................ 55 Tons

Table length ................................ 78.7"

Maximum bending length ...................... 82.1"

Distance between uprights ................... 66.9"

Throat depth ................................ 15.7"

Length of stroke ............................  3.94"

Open height ................................. 14.57"

Number of cylinders ......................... 1

Lower beam speed: Rising .................... 3.54 in./sec.

                  Bending ...................  .35 in./sec.

                  Lowering .................. 2.72 in./sec.



Equipped With:

- Up-acting hydraulic operation

- #NC9-EXII two-axis CNC control of back gauge (24" travel)

and ram

- Automatic gauge finger height adjustment

- Dual station remote electric foot pedal for speed and

position of the lower beam

- Full complement of sectional upper die clamps

- Full length bottom die rail comprised of three removable

sections

- 5 H.P. 3/60/230-460 volt hydraulic pump motor and

electrical controls

- Machine is wired for 230 volt operation.



Approximate Weight: 8.267 Lbs.

Approximate Dimensions: 97" L-R x 52 F-B x 83" High
