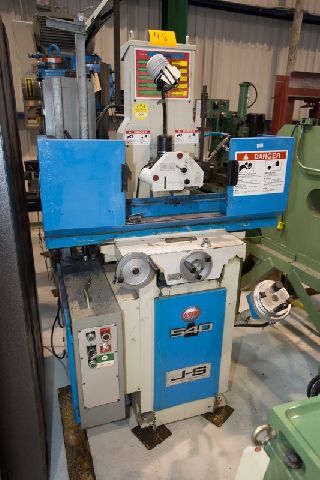

6" X 18" JONES & SHIPMAN "HIGH COLUMN" "PRECISION"
HAND FEED SURFACE GRINDER (MADE IN ENGLAND)
MODEL: 540 S/N: BO-16940 NEW: 2002
WIDTH& LENGTH GROUND ..................... 6" X 18"
MAX. DISTANCE FROM CENTER OF SPINDLE TO
TABLE TOP .................................. 19- 3/4"
MAX. DISTANCE FROM CENTER OF SPINDLE TO
THE TOP OF THE CHUCK ........................... 17"
LONGITUDINAL TABLE TRAVEL ....................... 19"
CROSS TRAVEL ................................ 6- 3/4"
FINE CROSS FEED KNOB GRADUATED IN ........... 0.0001"
VERTICAL FEED ADJ. IN INCREMENTS OF ........ 0.00005"
MAX. VERTICAL MOVEMENT OF WHEELHEAD ............. 11"
STANDARD GRINDING WHEEL .......... 7" X 1/2" X 1- 1/4"
SPINDLE MOTOR ................................. 2 H.P
APPROX. MACHINE WEIGHT .................... 1,500 LBS
APPROX. DIMENSIONS ................... 4 X 3 X 65"H
EQUIPPED WITH:
HAND FEEDS
POWER RAPID ELEVATION OF THE GRINDING WHEELHEAD
WHEELHEAD SLIDE TRAVERSES ON BALL & ROLLER BEARINGS,
RUNNING ON PRECISION GROUND BAR GUIDES
(OUR COMMENT ON THIS: "VERY SMOOTH, REALLY NICE")
AUTOMATIC LUBRICATION TO TABLE & SADDLE WAYS
FINE FEED KNOB FOR CROSS FEED (.0001" GRAD.)
FINE FEED KNOB FOR VERTICAL FEED (.000050" GRAD.)
2 H.P. SUPER-PRECISION SPINDLE
** INSPECT UNDER POWER IN OUR HARRISON, N.J. FACILITY **
** EXCELLENT CONDITION **
