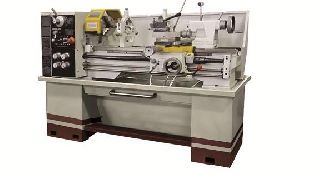

NEW GMC 16" x 40" HIGH SPEED PRECISION ENGINE LATHE
MODEL: GML-1640
FEATURES:
ISO 9001 certified
Heavy duty cast iron machine base
Full geared-head precision engine lathe with foot brake
Main motor 4HP, 220V, 1 phase
Spindle bore 2-1/16"
Heavy duty spindle D1-6
Heavy duty guide way width 8-5/8"
18 spindle speeds from 65-1,810 rpm,
speeds: 65/100/160/200/235/280/300/330/360/500/550/700/840/910/1095/1200/1400/1810 rpm
36 kinds of inch threads and 32 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened, and precision ground
All gears and shafts are hardened and precision ground
Guide ways induction hardened and precision ground
Automatic bath lubrication in headstock and feed box
One year industrial warranty for parts
SPECIFICATIONS:
Max. swing over bed ......................................... 16"
Max. length of work piece ................................... 40"
Max. length of cutting ...................................... 34"
Max. swing over cross slide ................................. 9-3/16"
Max. swing in gap ........................................... 21-3/4"
Width of bed ................................................ 8-5/8"
Effective length in gap to spindle .......................... 6-1/2"
Effective length in gap to chuck jaws ....................... 3-5/8"
Spindle bore ................................................ 2-1/16", D1-6
Taper of spindle center ..................................... M.T.#6
Spindle speeds .............................................. 65-1,810 rpm, 18 steps
Longitudinal feeds .......................................... 0.002-0.05 IPR, 40 kinds
Cross feeds ................................................. 0.001-0.01 IPR, 40 kinds
Inch threads ................................................ 4-60 TPI, 36 kinds
Metric threads .............................................. 0.4-7.0 mm, 32 kinds
Diametral pitch threads ..................................... 16-44 DP, 30 kinds
Module threads .............................................. 0.4-3.0 mm, 22 kinds
Max. travel of top slide .................................... 5-1/4"
Max. travel of cross slide .................................. 9-1/4"
Diameter of tailstock quill ................................. 1-1/4"
Max. travel of tailstock quill .............................. 4-3/4"
Taper of tailstock quill center ............................. M.T.#4
Main motor .................................................. 4 HP, 220V, 1 phase
Coolant pump ................................................ 1/16 HP, 220V, 1 phase
Net weight, approx. ......................................... 2,150 lbs.
Overall dimensions .......................................... 79"L x 36"W x 58"H
STANDARD EQUIPMENT:
Free OEM SINO DRO, 2 axis, installed
Taper attachment, installed
8" 3-jaw chuck with one set reversible jaws
8" 4-jaw chuck
11" face plate
4" steady rest with brass tips
4" follow rest
Removable gap
Foot brake
Coolant system
Halogen work light
4-way tool post
Full length splash guard
(2) dead centers and (1) reducing sleeve
Thread chasing dial
Toolbox
OPTIONAL EQUIPMENT (CALL FOR PRICING):
Micro carriage stop
5-C hand lever type collet closer, #5C, free install
33 pc 5C collet set, from 1/16" to 1-1/16" by 32ndth
Taper turning attachment, free install
6 pc ALORIS type quick change tool post
Live center MT3
1/2" drill chuck
1/2" drill chuck arbor
*We will meet or beat virtually any price on the web. We also offer special financing deals with integrated discounts for qualified customers.
