| Estatus: | CERRADO | | Id# | 19475 | | Ref: | 10135 | | Nombre: | BRAKES, PRESS, N/C & CNC | | Fabricante: | AMADA | | Modelo: | HFE-1704S/7 | | Año: | 2000 ( Usado ) | | Localización: | USA | | Precio: | | | | | |
|---|

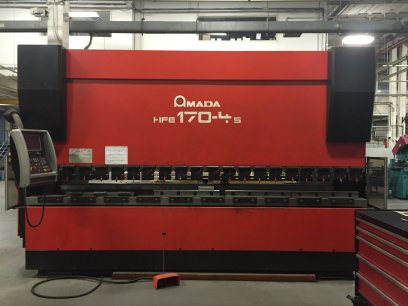

| Descripción: | 187 TON X 167\" AMADA HFE 1704S/7 \"DOWN-ACTING\" HYDRAULIC CNC PRESS BRAKE OPERATEUR 7-AXIS CNC BACKGAUGE - ONLY 2800 HOURS
HFE 1704S is a 187 ton, down-acting hydraulic press brake with a bed
length of 14 feet. There are 148\" between the frames, with an open height of
17.7\". The maximum travel distance of the ram is 7.0\", and the maximum bend
length that can be formed is 171\". The ram repeatability is 0.0004\", while
the backgauge can travel 27.5\".
The HFE 1704S has an Operateur CNC control, which is used to control the
ram and backgauge, as well as other appropriate functions. The control has the
ability to program the machine in either GRAPHICS Mode, ANGLE Mode, DEPTH Mode
or to reverse the ram based on tonnage. The HFE 1704S also features a 16\"
throat, sectionalized punch holders with fast release clamp, a larger brake
for staging a variety of complex parts, a foot pedal, and a hand wheel.
System Specifications
Press Brake
Capacity: 187 U.S. tons
Bed Length: 167 inches
Maximum Stroke Length: 7.8 inches
Open Height: 18.5 inches
Throat Depth: 16.5 inches
Distance Between Side Frames: 148 inches
Ram Repeatability: +/- 0.0004 inches
Approach Speed: 7.87 inches per second
Bending Speed: 0.04 to 0.787 inches per second, programmable
Return Speed: 0.04 to 7.87 inches per second, programmable
Overall Machine Dimensions: 191\" x 68.5\"(105\" including control and pendant)
x 114\" High
Machine Weight:30,760 lbs
Machine Powe: 27.5 KW
Foundation: 6 inch concrete slab
Backgauge
Model
Amada Type B
Repeatability: X Axis +/- 0.0004 inches
Movement Range
X Axis 27.5/37.5 inches
R Axis 9.84 inches
Z Axis 137 inches
Feed Speed
X Axis 19.5 inches per second
R Axis 6.2 inches per second
Z Axis 39.3 inches per second
|
|---|
|
|---|
| |
| |
|
|
|
|
|
|
