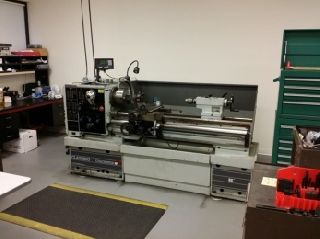

15" x 50" CLAUSING-COLCHESTER ENGINE LATHE
MODEL: 15", S/N: TGO358, NEW: 1999
SPECIFICATIONS:
SWING OVER BED ....................... 15.7"
SWING OVER CROSS SLIDE ............... 9.7"
DISTANCE BETWEEN CENTERS ............. 50"
HOLE THRU SPINDLE .................... 2.125"
SPINDLE NOSE, CAMLOCK SIZE ........... D1-6"
SPINDLE SPEEDS (16) .................. 25 - 2000 RPM
HEADSTOCK & TAILSTOCK SPINDLE TAPER .. #5 MORSE
TAILSTOCK SPINDLE TRAVEL ............. 6.1"
TAILSTOCK SPINDLE DIAMETER ........... 2.8"
WIDTH OF BED ......................... 12.5"
FEEDS:
LONGITUDINAL (56) ............... .0007 - .048 IPR
CROSS (41) ...................... .00035 - .024 IPR
THREADS:
INCH (45) ........................ 2 - 56 TPI
METRIC (39) ...................... .2 - 14 mm
DIMENSIONS ........................... 96" x 38" x 52"
APPROX WEIGHT ........................ 3,500 LBS
EQUIPPED WITH:
- INCH/METRIC THREADING CAPABILTIY
- NEWALL TOPAZ TWO AXIS DIGITAL READOUT
- 10" 3-JAW CHUCK
- 12" 4-JAW CHUCK
- TAPER ATTACHMENT
- ALORIS MODEL: CXA QUICK CHANGE TOOLPOST
- 5C HANDWHEEL COLLET CLOSER
- COOLANT SYSTEM
- 7.5 HORSE POWER SPINDLE DRIVE MOTOR
CONDITION: **** EXCELLENT ****
