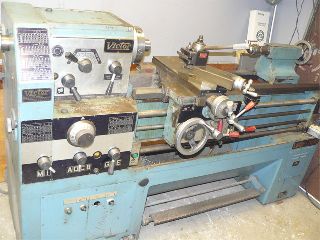

16" x 40" VICTOR ENGINE LATHE
MODEL: 1640, S/N: 461003, NEW: 1980S
SPECIFICATIONS:
SWING OVER BEDWAYS ................... 16"
SWING OVER CROSS SLIDE ............... 9"
HOLE THRU SPINDLE .................... 2"
DISTANCE BETWEEN CENTERS ............. 40"
WIDTH OF BED ......................... 11-3/4"
SPINDLE NOSE ......................... D1-6" CAMLOCK
SPINDLE SPEED RANGE (8) .............. 65 - 1800 RPM
ENGLISH THREADING RANGE .............. 4 - 56 TPI
METRIC THREADING RANGE ............... .5 - 7 mm
LONGITUDINAL FEED RANGE .............. .0008" - .0117" IPR
CROSS FEED RANGE ..................... .0004" - .0054" IPR
TAILSTOCK SPINDLE TAPER .............. #4MT
TAILSTOCK SPINDLE TRAVEL ............. 4-11/16"
APPROX FLOOR SPACE ................... 86"L x 37"W x 60"H
APPROX WEIGHT ........................ 3,600 LBS
EQUIPPED WITH:
- TRAV-A-DIAL FOR LONGITUDINAL CARRIAGE TRAVEL
- 3-JAW CHUCK
- 4-JAW CHUCK
- LEVER TYPE 5C-COLLET CLOSER
- STEADY REST
- ALORIS QUICK CHANGE TOOLPOST WITH HOLDERS
- THREAD DIAL
- FOOT BRAKE
- COOLANT SYSTEM
- HARDENED BEDWAYS
- 5 HORSE POWER MAIN MOTOR
- SIX POSITION BED TURRET FOR AN ADDITIONAL COST OF $750
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
CONDITION: **** EXCELLENT ****
