| Estatus: | CERRADO | | Id# | 19275 | | Ref: | 10077 | | Nombre: | 4000 WATT MAZAK SPACEGEAR 510 MARKII 6-AXIS W/ROTARY AXIS, MFG:2008 | | Fabricante: | MAZAK | | Modelo: | SPACEGEAR 510 | | Año: | 2008 ( Usado ) | | Localización: | USA | | Precio: | | | | | |
|---|
| Descripción: | STK #: 10077

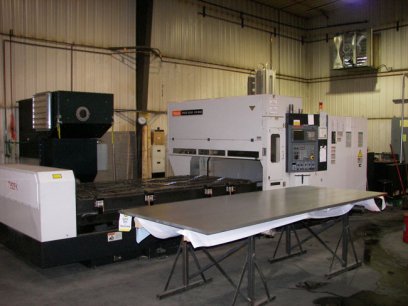

4000 WATT MAZAK SPACEGEAR 510 MARKII 6-AXIS W/ROTARY AXIS, MFG:2008
There\'s simply no compromise when it comes to SPACEGEAR. Large capacities and your choice of laser resonators allow you to fit your fabrication needs perfectly. Shops that process 1/2\" or thinner steel will benefit from low operating costs of a 1800W unit. At the other end of the scale, our robust 4000W laser tackles the heavy jobs with ease. 2-D mode for flat sheet and plate up to 144\" X 72\" (6\' x 12\' model) and 7/8\" thick. Rapid traverse rates of 945 ipm make for efficient and fast cutting. 3-D mode makes use of our compact cutting head with 360 rotation in the A- axis and 135 in the B-axis to maintain a normal cutting angle to all preformed sculptured surfaces. A non-contact profiler maintains a constant stand-off distance and eliminates marring of the part. SPACEGEAR can even design and build its own part locating fixtures for Done-in-One fast turnaround. Tubes, pipes, and structural shapes can all be processed by adding a CNC rotary chuck and supports for long workpieces. In all, six axes of continuous CNC control allow you to cut weld preps, angled features, and much more in a single set-up. No three-axis laser can match this flexibility and throughput. Mazak Space Gear - 510 Mark II Specifications Max, workpiece size Flat plate: 2500X1250mm (98\"x49\") Cubic workpiece: 3050X 1525mm (120\" x 60\") Max.load capacity:
1500W @ 440kg(970 lbs)
1800W @ 585kg(12990 lbs)
2500W @ 700kg(1540 lbs)
4000W @ 810kg(1782 lbs)
Axis stroke X axis @ 3335mm (131\")
Y axis @ 1545mm (60\")
Z axis @ 420mm (16.5\")
A axis @ 360degree (plus, minus)
B axis @ 135degree (plus, minus)
Rapid traverse rate X,Y,Z axis : 24m/min(945 in./min)
A,B axis : 9600degree/min
C axis : 2000degree/min
Program method EIA/ISO and interactive. Equipped with: Mazak-Fanuc L-64 control. CNC Rotary axis (9.83\" if you grab tube from inside, and 6.3\" if you grab from outside.) Chiller
|
|---|
|
|---|
| |
| |
|
|
|
|
|
|
