| Estatus: | CERRADO | | Id# | 19217 | | Ref: | 10063 | | Nombre: | 18 Ton X 15.75\" TOYOKOKI APB-184, FULLY ELECTRIC, 3-AXIS, MFG:1993 | | Fabricante: | TOYOKOKI | | Modelo: | APB-184 | | Año: | ( Usado ) | | Localización: | USA | | Precio: | | | | | |
|---|
| Descripción: | STK#: 10063

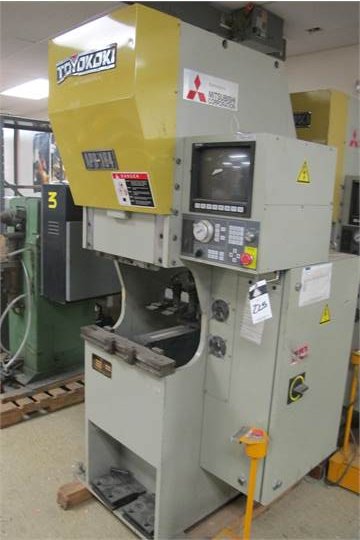

18 Ton X 15.75\" TOYOKOKI APB-184, FULLY ELECTRIC, 3-AXIS, MFG:1993
Specifications
Capacity: 18 ton (18000 kgf)
Bending Length: 15.75 in (400 mm)
Stroke Length: 3.94 in (100 mm)
Down Stroke Speed: 0.04 ~ 3.94 in/sec (1.0 ~ 100 mm/sec)
Bending Speed: 0.008 ~ 0.79 in/sec (0.02 ~ 20 mm/sec)
Up Stroke Speed: 3.94 in/sec (100 mm/sec)
Main Motor AC Servo Motor: 8 hp (6 kW)
Backguage Motor Ac Servo Motor: 0.13 hp (0.1 kW)
Ram Repetition Accuracy: 0.00004 in ( 0.001 mm)
Backguage Repetition Accuracy: 0.0004 in ( 0.01 mm)
Backguage Speed: 1181 in/min (MAX 30 m/min)
Backguage Stroke: 7.87 in (200 mm)
Backguage up/down Stroke (Auto): 0.47 in (12 mm)
Backguage up/down Stroke (Manual): 3.54 in (90 mm)
Machine Weight: 1250 kg
Clean precise and fully electric.
The Toyokoki APB Series press brakes are totally electric, easy to operate and
offer ultra-high precision. Toyokoki\'s precision bend technology meets current
trends such as small lot, multi-product production, short cycle delivery
schedules, increased product complexity and increased accuracy requirements.
For small parts, get a small machine. this compact, 3-axis press brake
requires minimal floorspace and has a low price tag too. The APB-184 has an
18-ton capacity, 4-inch stroke and a bending length of nearly 16\" yet it only
requires 11.5 sq ft. of floor space. It comes with a patented automatic
thickness sensing feature that adjusts for varying thicknesses of metal stock
and ensures that operations are consistently accurate.
|
|---|
|
|---|
| |
| |
|
|
|
|
|
|
