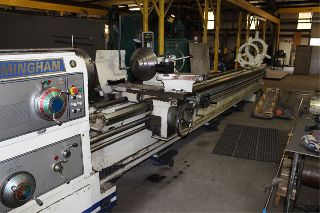

32"/39" x 240" BIRMINGHAM GAP BED ENGINE LATHE
MODEL: DL-32240, NEW: 2008
SPECIFICATIONS:
SWING OVER BED ........................... 32"
SWING OVER CROSS SLIDE ................... 20-1/2"
SWING OVER GAP ........................... 39"
DISTANCE BETWEEN CENTERS ................. 240"
SPINDLE SPEEDS (18) ...................... 7.5 - 1,000 RPM
SPINDLE NOSE CAMLOCK ..................... D1-11"
HOLE THRU SPINDLE ........................ 5-1/8"
THREADING - INCH ......................... 1/16 - 32 TPI
THREADING - METRIC ....................... 1 - 256 MM
LONGITUDINAL FEED RANGE(64) .............. .002" - .96"
CROSS FEED RANGE(64) ..................... .001" - .48"
TAILSTOCK TAPER .......................... #5MT
TAILSTOCK SPINDLE TRAVEL ................. 9-1/2"
TAILSTOCK SPINDLE DIAMETER ............... 3-5/16"
APPROX WEIGHT ............................ 15,500 LBS
APPROX DIMENSIONS ........................ 340"L x 58"W x 75"H
EQUIPPED WITH:
NEWALL TWO AXIS DIGITAL READOUT
INCH & METRIC THREADING
TAPER ATTACHMENT
4-JAW CHUCK
3-JAW CHUCK
RAPID TRAVERSE OF CARRIAGE
(2)STEADY RESTS
FOLLOW REST
TOOLPOST
COOLANT SYSTEM
20 HORSE POWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
CONDITION: **** EXCELLENT ****
