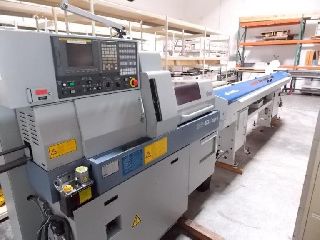

STAR SR-10J CNC SWISS AUTOMATIC LATHE
NEW: 2008 INSTALLED: DEC. 2009
CNC Control: Fanuc 18iTB*
Max. machining diameter: 10mm(25/64in)
Max. headstock stroke
Stationary GB: 135mm (5-5/16in)
Revolving GB: 105mm (4-9/64in)
Number of tools: 6 tools (8mm)
4-Spindle sleeve holder
Number of tools: 4 Front
4 Back
Max. Drill Capacity: 6mm (15/34in)
Max. Tapping Capacity: M5XP0.8
Power Driven Attachment:
Number of Tools: 3
Max. Drilling Capacity: 4mm (5/32mm)
Max. Tapping Capacity: M3xP0.5
Main Spindle Indexing: C-Axis Control
Main Spindle Speed: 15,000 RPM
Main Spindle Motor: 2.2kw(continuous)/3.7kw(15min.)
Power-driven att. spindle speed: Max. 10,000min-1
Power-driven att. drive motor: 0.5kw
Power consumption: 3.5KVA
Backworking Attachment Specifications
Max. chucking diameter: 10mm (25/64in)
Max. length for front ejection: 70mm (2-3/4in)
Max. parts projection length: 20mm (25/32in)
Back 4-Spindle unit
Number of tools: 4 tools (2-live, 2-fixed)
Max. drilling capacity
Stationary tool: 4mm (5/32in)
Power driven tool: 4mm(5/32in)
Max. tapping capacity:
Stationary tool: M3XP0.5
Power driven tool: M3XP0.5
Sub spindle min. indexing angle: 15 degree : OP
Sub spindle speed: Max. 10,000 RPM
Sub spindle motor: 0.55kw(continuous)/1.1kw(15min.)
Dimensions (W x D x H): 6 x 2.5 x 5.5
Weight: 2100 lbs
Equipped With (to be confirmed by buyer):
Iemca Elite Magazine Bar Loader
Also available
IBag High Speed Spindles w/ collets - $40K option new!
(4) HT16S100
(2) HT22S100 ..................Price on Request
