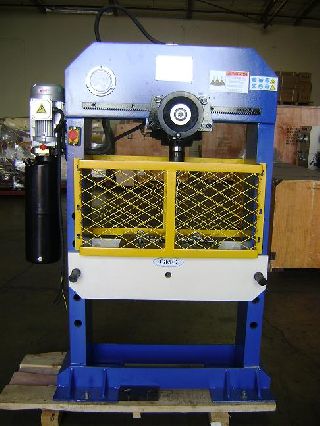

NEW "GMC" 30 TON HYDRAULIC SHOP PRESS
MODEL: HSP-30M
STANDARD FEATURES
ISO 9001 CERTIFIED & CE STANDARD
ELECTRIC HYDRAULIC SHOP PRESS
MOVABLE CYLINDER WITH HANDWHEEL
RIGID H FRAME
MOTORIZED AND HAND OPERATION
FAST AND EASY OPERATION
AUTOMATIC PISTON RETURN
PRESSURE GAUGE
OVERLOAD PROTECTION AND DISCONNECT SWITCH
POWER SOURCE 208V/220V (OPTION 460V, 3 PHASE)
ONE YEAR INDUSTRIAL WARRANTY FOR PARTS
SPECIFICATIONS
MAX. CAPACITY ........................................ 30 TONS
MAX. PRESSURE ........................................ 3625 PSI
WORKING SPEED ........................................ 0.57 IN/SEC
LOWERING SPEED ....................................... 0.57 IN/SEC
RETURN SPEED ......................................... 0.62 IN/SEC
WORKING WIDTH ........................................ 19-1/2"
MOVABLE CYLINDER ..................................... YES
CYLINDER STROKE ...................................... 11-3/4"
CYLINDER DIAMETER .................................... 4-7/8"
PISTON ROD DIAMETER .................................. 2-1/2"
OIL TANK CAPACITY .................................... 2 GAL.
MAIN MOTOR ........................................... 3 HP, 220V, 3 PHASE
MACHINE WEIGHT ....................................... 1,050 LBS
DIMENSIONS ........................................... 53" x 23" x 67"
