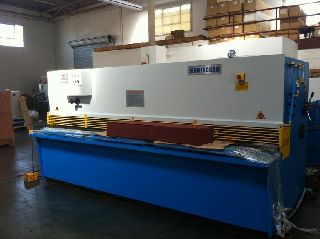

NEW BIRMINGHAM 8 x 10 Ga. HEAVY DUTY HYDRAULIC SHEAR
MODEL: H-0835-C MADE IN CHINA
SPECIFICATIONS:
Cutting Capacity: 8
Mild Steel: 10 Ga.
Stainless Steel: 13 Ga.
Blade Length: 84"
Strokes Per Minute (SPM): 28-40
Hold-Downs - Number: 13
Hold-Downs - Pressure (Tons): 6.7
Front Support: 40"
Back Gauge: 24"
Top Blade Rake Adjust: Hydraulic Adjustment Rake Angle
Top Blade Rake Angle: 1/2-2 Degrees
Motor: 10 hp
Oil Tank Capacity: 40 gallons
Net Weight: 8,200 lbs.
Overall Dimensions (w/o support arm): 132" x 50" x 65"
STANDARD EQUIPMENT:
Manual quick change blade gap adjustment
24" front controlled power backgauge
Pressure sensing holding-downs
Shadow lighting
Squaring scale plate
3 support arm
OPTIONAL EQUIPMENT:
3 axis CNC programmable backgauge (touch screen operated, controls backgauge depth, blade gap adjustment,
stroke length; 10 program storage capacity; can be operated in manual or automatic mode)
Change to 36" power back gauge
6 pneumatic sheet lift
8 pneumatic sheet lift
10 pneumatic sheet lift
Material support
6 squaring arm
8 squaring arm
10 squaring arm
