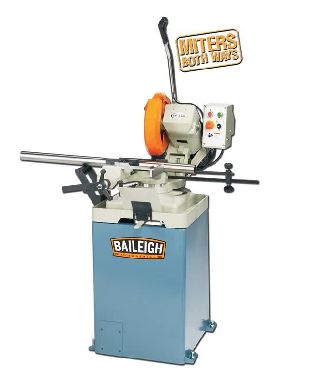

NEW BAILEIGH EUROPEAN STYLE MANUALLY OPERATED COLD SAW
MODEL: CS-315EU
FEATURES:
12.5" blade
Manual feed
Miters up to 45 degrees left and right
220V, 1-phase
MITERING CAPACITIES:
Round tube @ 90 degrees: 4"
Round solid @ 90 degrees: 2"
Square tube @ 90 degrees: 3.2" x 3.2"
Rectangle tube @ 90 degrees: 4.25" x 2.75"
Round tube @ 45 degrees: 4"
Round solid @ 45 degrees: 2"
Square tube @ 45 degrees: 3.2" x 3.2"
Rectangle tube @ 45 degrees: 3.25" x 2.75"
SPECIFICATIONS:
Maximum blade diameter: 12.5"
Arbor size: 1.26"
Blade speed: 52 rpm
Operation: manual
Head style: pivot
Maximum vise opening: 4.72"
Vise style: single action with cam lock
Head miter: 45 degrees left, 45 degrees right
Slotting capable: no
Coolant system: yes
Motor: 2.5 hp
Electrical requirements: 220V, 1-phase
Shipping dimensions (LxWxH): 40" x 40" x 72"
Shipping weight: 500 lbs.
OPTIONAL (call for pricing):
Blades
Bio-Degradable Saw Coolant
