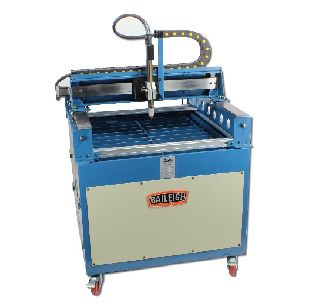

NEW BAILEIGH 2 x 2 CNC PLASMA CUTTING TABLE
MODEL: PT-22
FEATURES:
-2 x 2 (610 x 610 mm) cutting area
-Water table pitched to drain
-High quality stepper motors with lead screw drive
-Single drive on X axis, dual drives on Y axis
-Hardened ground slideways with wipers on X and Y axis
-Fully welded main frame
-5" casters (2) stationary-(2) swivel with brake
-Raised material grates for ease of loading
-Industrial cable track on X axis
-Latched and hinged access doors on both sides
-Shelf in cabinet for storage
-Easy to use programming software
-110V
PLASMA CUTTING SYSTEMS (call for pricing):
Model 42M:
-The only plasma cutter in its class that provides increased output power when switching from 120 volt to 230 volt input.
-Competitively priced for the 1/4" (6mm) market, but with the cut capacity of a larger machine.
-Features the new SL40 torch, based on the proven Surelok platform.
-Vent2Shield allows the use of considerably smaller air compressors compared to similar 40 amp plasma cutters.
-Greater cutting capacity than any 1/4" (6mm) plasma cutter. Cuts all day at 1/4" with the power to cut 5/8".
-Compact and lightweight, only 26 lbs. (11.8kg) for serious portability.
-Only 40 amp unit on the market with quick disconnect torch and lead extensions.
-Features two power plugs, one for the standard 120 volt outlet and another plug for a 230 volt outlet.
Model 52M:
The Thermal Dynamics
