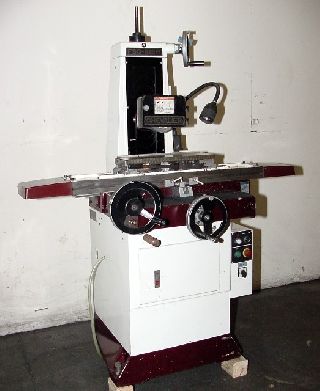

6" X 18" CHEVALIER HAND FEED SURFACE GRINDER
MODEL: FSG-618M S/N: A3923013 NEW: 2003
WIDTH AND LENGTH GROUND ..................... 6" X 18"
LONGITUDINAL TRAVEL .......................... 18"
CROSS FEED TRAVEL ............................ 6"
MAX. DISTANCE FROM TABLE TOP TO SPINDLE
CENTERLINE ................................... 17"
MAXIMUM GRINDING WHEEL DIAMETER .............. 8"
ELEVATING HANDWHEEL GRAD. .................... 0.0001"
CROSS FEED HANDWHEEL GRAD. ................... 0.0005"
SPINDLE SPEED ............................... 3,300 RPM
FLOOR AREA OPERATING SPACE .................. 56" X 43"
APPROXIMATE MACHINE WEIGHT .................. 1,175 LBS
EQUIPPED WITH:
ROLLER BEARING TABLE DESIGN
CAST IRON BASE
1.5 H.P. 3/60/230-460 VOLT DIRECT DRIVE
"CARTRIDGE TYPE" SPINDLE
6" X 18" PERMANENT MAGNETIC CHUCK
WORK LIGHT
ONE-SHOT LUBRICATION SYSTEM
*** EXCELLENT OPERATING CONDITION & APPEARANCE (ORIGINAL PAINT) ***
*INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE*
