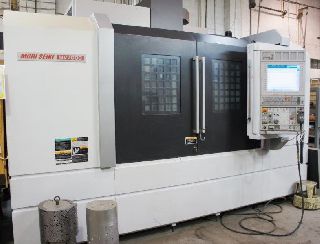

MORI SEIKI NV 7000 CNC VERTICAL MACHINING CENTER
MFG: 2010
SPECIFICATIONS:
Table Size T-Slotted 67.0" X 30"
Table Travel X - Axis 60"
Y - Axis 30"
Z - Axis 29"
Table Load Capacity 4,000 LBS.
Rapid Traverse Rates 787 X,Y,Z IPM
Spindle Nose CAT# 50 TAPER
Spindle Speed 10,000 RPM
Tool Magazine 30 ATC
Main Motor 40/33 HP AC
Machine Floor Space 168.5" x 143.5"
EQUIPPED WITH:
MSX 701IV MAPPS CONTROL
640M OF MEMORY
HIGH SPEED MACHINING (LOOK AHEAD CONTROL)
3-D CUTTING SIMULATION
4TH AXIS READY
RIGID TAPPING
HELICAL INTERPOLATION
CYLINDRICAL INTERPOLATION
INTERNAL CHIP CONVEYOR
EXTERNAL CHIP CONVEYOR
ADDITIONAL WORK COORDINATE 48
200 TOOL OFF SETS
200 REGISTERED PROGRAMS
TOOL LIFE MANAGEMENT
CUSTOM MACRO COMMON VARIABLES, 600 IN TOTAL
IN MACHINE MEASURING SYSTEM (SPINDLE) OPTICAL TYPE RENISHAW
**ROTARY (BELOW) INCLUDED WITH PURCHASE OF MACHINE**
EQUIPPED WITH:
FANUC A22/300i AC SERVOMOTOR
HYDRAULIC CLAMPING
108:1 TOTAL REDUCTION (MAX, SPEED 3000 RPM MOTOR)
MANUAL TAILSTOCK / TC400
MANUAL 15" 3 JAW CHUCK ASSEMBLY, RS15
MMK MATSUMOTO MDi400R
CONTACTO
