| Estatus: | ABIERTO | | Id# | 18179 | | Ref: | 148705 | | Nombre: | 50 Ton 48 Bed Betenbender 4-50 NEW PRESS BRAKE, Made in the USA | | Fabricante: | Betenbender | | Modelo: | Apr-50 | | Año: | ( Nuevo ) | | Localización: | USA | | Precio: | $26,900.00 | | | | |
|---|

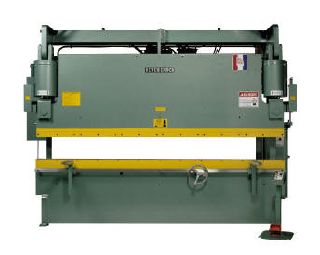

| Descripción: | New Betenbender 50 Ton x 4 Hydraulic Press Brake
Model: 4-50 Made In The USA
SPECIFICATIONS:
Overall Width 45
Width of Bed 2
Width of Upper Machined Ram 1-3/4
Overall Height 104
Throat Depth 8
Open Height 12
Closed Height 6
Height of Bed 28
Overall Length 63
Distance Between Housing 30-1/2
Width of Upper Ram 2
Width of Upper End Plates 36
Press (IPM) 0-66
Rapid Approach (IPM) 66
Return to Open (IPM) 92
2-Speed Electric Shift - Standard
HP 10
Weight 5,800 lbs.(est)
STANDARD FEATURES:
Clamp Type BG-Manual Adjustable X, Y, Z - 24
2-Speed Ram (17T-70T models)
3-Speed Ram (95T-350T models)
NEMA Electrics
Three Position Foot Pedal
Depth Stop with Digital Readout
Bottm Time Delay
Hour Meter
All Hydraulic Fluids Included
American Made Motor and Valves
Disconnect Switch
American Made Hoses and Fittings
All Steel Construction
Hydraulic Pressure: 2750 PSI
Cylinders are steel, double acting piston type with hardenend,
ground and chromed rods
Hardened Pins with Spherical bearings for alignment
Front & Back of Bed Machined Smooth for Mounting of Gauges
Multi-switch control panel (with emergency switch, run-job, and
up-down buttons) and 3-position fully guarded switch
Handwheel control to .001 for depth of bend adjustment
Ram Tilt Micrometer
Pressure Gauge
Control Panel
Ram Machined with 1/2 x 3/4 slot. (die riser optional)
OPTIONAL ACCESSORIES: (call for pricing)
Manual Front Reading 24 BG w/ Mechanical Readout
Power Front Reading BG w/ 5 Station NC GO-TO Positioner on
Pendant
Power Ram Adjust w/ 5 Station NC GO-TO Positioner on Pendant
Extra Length on Backgauge
Micrometer Precision gauge unit
CNC Ram Stop
CNC BG
24 Support Arms (pair) Slide type
Extended Support Arms (each)
Disappering Stops
Worklight
Variable tonnage control
One shot lubrication
Oil Cooler
Light Curtain
Operator station palm control
Additional Foot pedal with Key Lock
Palm buttons/foot control system (hand buttons to preset height,
stop and hold, foot to continue to shut height)
Dove Tails
T-Slots
Ram machining
Bed Machining for angle brackets
Angle brackets (plate) for top
Angle brackets (plate) for bottom
Increase Throat gap or Increase open height
Increase Stroke Length
Keylock Switch
Die Holder-Riser
Die Rollover bars (recommended for 4/way dies)
Air Life (recommended for 4/way dies)
Dual Calibration (In/Metric)
208 Volt
Special Paint Colors
Bolt/Shim Kit for Leveling
|
|---|
|
|---|
| |
| |
|
|
|
|
|
|
