| Estatus: | ABIERTO | | Id# | 17943 | | Ref: | 147269 | | Nombre: | 75 Ton 120 Bed Haco Synchromaster SRM 75-10-8 NEW PRESS BRAKE, Standard AT | | Fabricante: | Haco | | Modelo: | Synchromaster SRM 75-10-8 | | Año: | ( Nuevo ) | | Localización: | USA | | Precio: | $55,100.00 | | | | |
|---|

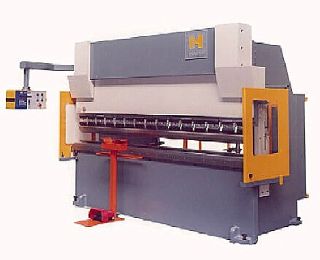

| Descripción: | NEW HACO 75 TON x 10 CNC PRESS BRAKE
Model: 75-10-8 ATS-560 CNC CONTROL
STANDARD EXECUTION:
- Electronic controlled ram synchro system w/ servo-hydraulic valves.
- Automatic compensation of the side frame deflection by table referenced linear scales, connected w/ the ram SYNCHRO-system
- Pendant control panel with Robosoft ATS 560 CNC control
- X-axis: backgauge with 0.004 positioning accuracy
- Y1/Y2 ram axes positioning, 0.0004 accuracy
- Programmable pressure, ram stroke and ram opening height
- Programmable speed change point
- Automatic full cycle of the ram
- 31 CNC controlled backgauge on high precision ballscrews,including 2 universal fingerblocks, manually adjustable in width and height
- Ram and table machined to use American style tooling.
- Operation, programming and maintenance manual.
- Foot pedal control
d - Full oiltank
SPECIFICATIONS:
Max Capacity 75 Tons
Working Length 122
Distance between housings 102
Fast Approach Speed 189 IPM
Max Working Speed 24 IPM
Fast Return Speed 165 IPM
Motor 10 hp
Ram Stroke 3.9
Gap 7.8
Daylight Opening 11
Table Height 34
Dimensions: 90 x 138 x 57 (H x L x W)
Weight 11,220 lbs.
STANDARD CNC CONTROL MODEL ATS-560:
- 7 Segment LED display (8 digits)
- Capacity of 400 steps, max. 200 programs
- Programmable: top dead center, speed change point, backgauge retracction, material thickness
- Programmable ram depth or pressure programming
- Depth jog mode
- Backgauge jog mode
- Absolute and incremental programming of the backgauge
- Part counter (up & down) in manual and automatic model
- Diagnostics
OPTIONAL SAFETY DEVICES: (CALL FOR PRICING)
- Central adjustable anti-deflection tables (manual or CNC controlled, only possible w/ ATS600 Control
- Extra fingerblocks
- Pneumatic finger height control
- Front stops
- European and new style manual and hydraulic tool clamping
- Higher level CNC Controls
(Model ATS 570 & ATS 600)
- Safety devices
|
|---|
|
|---|
| |
| |
|
|
|
|
|
|
