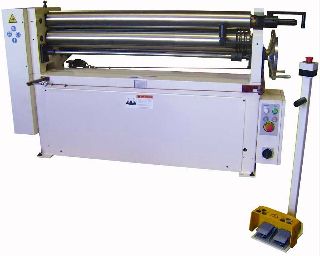

NEW "GMC" 4 x 3/16" Heavy Duty Power Bending Roll
Model: PBR-04316 Made In Taiwan
STANDARD FEATURES
ISO 9001 certified
All (3) rollers are driven
All (3) rollers are hardened to HRC 50
Adjustable cone attachment included
3/8", 1/2" and 5/8" wire grooves
Digital readout for E models only for bending roll position
Motorized powered bending roll up/down with push button for E
models only
One hand wheel for pinch roll up/down
One hand wheel for bending roll up/down with scale
Heavy duty casting frame
Heavy duty all steel welded machine base
Middle of roller is straight and the ends of roller crown to
get perfect round performance
Quiet running operation
Easy swing-out top roller
Safety line all around the machine for emergency stop
All rolls run forward and reverse
Safety type forward/reverse foot pedal
Power source 220V or 440V, 3 phase
One year industrial warranty
STANDARD EQUIPMENT
Adjustable cone attachment
Removable safety foot pedal
Safety line system
Operation & parts manual
SPECIFICATIONS
Capacity-
Mild steel ..................................... 43" x 3/16"
Stainless steel ................................ 43" x 11ga
Roll diameter .................................... 4-3/4"
Minimum bending diameter ......................... 6"
Pre-bend ......................................... 0.16"
Rolls speed(ft/min)............................... 20
Rolls opening .................................... 1/2"
Main motor ....................................... 3 HP
Approx. Weight ................................... 2,750 lbs
Dimensions(LxWxH) ................................ 78" x 30" x 52"
OPTIONS
Safety fence
Full length straight rollers
E model: PBR-0412E, 4 x 12ga. motorized powered bending roll
up/down with digital readout
