| Estatus: | ABIERTO | | Id# | 17629 | | Ref: | 139440 | | Nombre: | 10 Width 20 Length Birmingham WSG-1020AHD 3 Axis Automatic SURFACE GRINDE | | Fabricante: | Birmingham | | Modelo: | WSG-1020AHD 3 Axis Automatic | | Año: | ( Nuevo ) | | Localización: | USA | | Precio: | $17,400.00 | | | | |
|---|

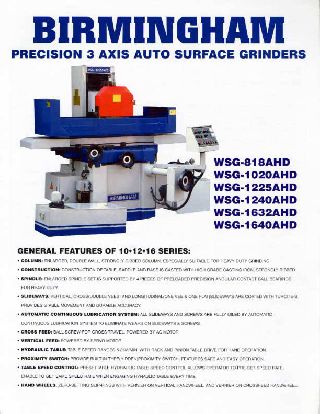

| Descripción: | New BIRMINGHAM 10 x 20 PRECISION 3-AXIS AUTOMATIC SURFACE GRINDER
MODEL: WSG-1020AHD
FEATURES:
- Column: enlarged, double wall, strongly ribbed column,
especially suitable for heavy duty grinding
- Construction: construction of table, saddle and base is casted
with high grade casting iron, strongly ribbed
- Spindle: Enlarged spindle set is supported by 4 pieces of
preloaded precision angular contact ball bearings for heavy
duty.
- Slideways: Vertical, cross (double vees) and logitudinal (one vee
& one flat) slideways are coated with Turcite-B,
provides stable movement and durable accuracy.
- Automatic Continous Lubrication System: All slideways and
screws are fully oiled by automatic continuous lubrication
system to eliminate wears on slideways & screws.
- Cross Feed: ball screw for cross travel, powered by AC motor
- Vertical Feed: Powered by servo motor
- Hydraulic Table: table speed ranges 5-25m/min. with rack and
pinion table drive for hand operation
- Proximity Switch: provide built-in-type (hidden) proximity
switch, features safe and easy operation
- Table Speed Control: Presettable hydraulic table speed control
allows operator to pre-set speed rate, enable to get
same speed rate when engaging hydraulic table every time
- Hand Wheels: zero-setting slip-rings with vernier on vertical
handwheel, and vernier on crossfeed handwheel
Specifications:
Table size: 10 x 20
Max. longitudinal travel: 25
Max. distance from spindle center to table: 23
Magnetic chuck size: 9.8 x 19.7
Speed of table longitudinal movement (in/min): 280 - 1000
Table traverse movement -
Auto Feed(in/min): 0.004 x 0.3
Rapid Speed(in/min): 39
Feed of Handwheel(in/div): 0.0008
Wheelhead vertical movement -
Auto Feed(in/stroke): 0.0002 - 0.002
Rapid Speed(in/min): 18
Feed of Handwheel(in/div): 0.0002
Grinding wheel -
Speed (60hz): 1,750 RPM
(OD x W x ID) Size: 13.8 x 1.6 x 5
Motor of spindle: 7.5 hp
Max. loading capacity of table (include magnetic chuck): 400 lbs.
Overall dimension (L x W x H): 106 x 86 x 74.4
Weight: 5,290 lbs.
Standard Equipment:
- Grinding wheel
- Grinding wheel flange
- Wheel balance arbor
- Diamond wheel dresser
- Working light system
- Toolbox
- Hoisting set
- Leveling pads
- Coolant/dust collect system
- Standard permanent magnetic chuck
|
|---|
|
|---|
| |
| |
|
|
|
|
|
|
