| Estatus: | ABIERTO | | Id# | 17498 | | Ref: | 137355 | | Nombre: | 33 Ton 50 Bed Birmingham HB-3350 NEW PRESS BRAKE, 24 FOMBG w/DRO, Made In | | Fabricante: | Birmingham | | Modelo: | HB-3350 | | Año: | ( Nuevo ) | | Localización: | USA | | Precio: | $21,360.00 | | | | |
|---|

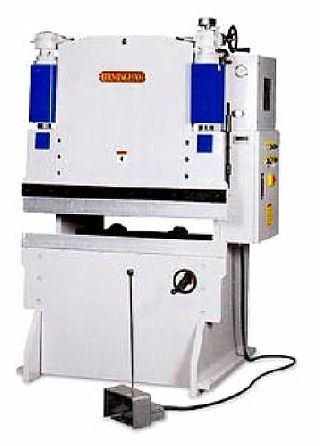

| Descripción: | New Birmingham 33 Ton x 50 Hydraulic Press Brake
Model: HB-3350 Made In Taiwan
machine is made to order - Not In Stock
Specifications:
Bending Length: 50
Max Pressure (Tons): 33
Distance Between Uprights: 38
Ram Stroke: 6
Table Width: 1-1/2 Bottom Die Holder Width
Distance Between Table/Ram: 10
Oil Tank: 20 gallons
Main Motor: 3 hp
Approach Speed (in/sec): 4
Bending Speed (in/sec): .27
Return Speed (in/sec): 2.36
Power Back Gauge (in): 24 (opt)
Back Gauge Motor (hp): 1/4 (opt)
Throat Depth: 8
Main Features:
CONSTRUCTION
The Frame is made of hight tension strength stress relieved steel
plate and rigidly bolted/welded to manufacture strong/u-transform
machine body.
WIDE GUIDEWAY
To ensure the movement of the guideblock more smoothly and
stable for high accuracy.
MECHANICAL PARALLEL DEVICE
The compulsory synchronization of the mechanical structure to
ensure the top die and bottom die are fully parallel at any position
of stroke movement.
HYDRAULIC OIL TANK & PUMP
A large tank allows the ail to run smoothly and efficiently. The high-
efficiency, low-noise pump improves the quality of the working
environment.
STROKE
Depth positioning by accurate mechanical stops inside the cylinder
to ensure every bend is to the same exact angle. Adjustable strokes
shortens machine time.
SAFETY FOOT CONTROL
Removable foot control pedal with safety protection. The upper die
beam is raised back to the top position immediately upon the
operator removing his foot from the pedal.
HYDRAULIC SYSTEM
High-efficiency hydraulic circulation system, quality solenoids and
two powerful cylinders provide maximum and stable output to
execute excellent performance. Ram downward by two-step speed,
fast-speed approaching and slow-speed press bending to shorten
the cycle time. Easy setting work pressure by stepless regulator
with overload protection device to provide proper pressure.
SINGLE-SIDE MICRO ADJUSTMENT
Two micro-fine adjusting bending angles, this device provides two
directional adjustments, increase or decrease bending angle(s), to
achieve a uniform angle on both ends of the bent workpeice.
DIES
One-piece upper forming punch. One-piece 4-way bottom lower die.
Multi-size V-slot design to meet most bending applications.
MANUAL BACK GAUGE
Precision ballscrew type back gauge with readout disply and micro
adjustor. Resolution 0.004.
Hydraulic bottom die angle compensation.
Power bending angle setup.
Jog, single and auto bending modes.
Standard Equipment:
24 or 32 Power ballscrew back gauge with digital counter display
and front control (optional for 22/33/38/50 ton model).
24 front operated manual ballscrew back gauge with digital
counter and micro adjustor (22/33/38/50 ton models).
24 (2) front support arms.
Powered bending angle setting device (opt: 22/33/38/50 ton
models).
Hydraulic bottom-die angle compensation (opt: 22/33/38/50 ton
models).
One top die and one 4-way bottom die (6 Vs for 66 ton and over,
single V for 50 tons and lower).
Control panel with all switch low voltage wired.
Removable foot pendal with safety protection housing.
Tool box with maintenance tools and leveling pads.
Optional Equipment (call for pricing):
24 Power ballscrew back gauge with digital counter display and
front control (optional for 22/33/38/50 ton models only).
Powered bending angle setting device (22/33/38/50 ton models).
Hydraulic bottom-die angle compensation (opt: 22/33/38/50 ton
models).
Safety sensor protection system.
Power grease injecting system.
Large throat depth per customers request.
Special custom die.
2 Axis CNC back gauge with German ELGO #P8822
|
|---|
|
|---|
| |
| |
|
|
|
|
|
|
