New Birmingham 13 x 1/4" Heavy Duty Hydraulic Shear
Model: H-1365 Made in Taiwan

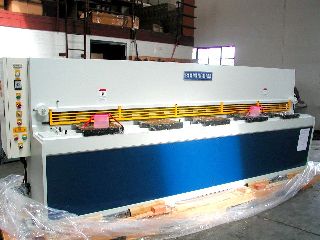

Note: Image shown is similar model H-1035 (10 x 10 Ga. model)
SPECIFICATIONS:
Cutting Capacity: 13
Mild Steel: 1/4"
Stainless Steel: 7 Ga. (3/16")
Blade Length: 134"
Strokes Per Minute (SPM): 20-28
Hold-Downs - Number: 18
Hold-Downs - Pressure (Tons): 18
Front Support: 40"
Back Gauge: 32" N/C
Top Blade Rake Adjust: Hydraulic Adjustment Rake Angle
Top Blade Rake Angle: 1/2-2 Degrees
Motor: 20 hp
Oil Tank Capacity: 100 gallons
Net Weight: 26,000 lbs.
Overall Dimensions (w/o support arm): 197" x 72" x 89"
STANDARD EQUIPMENT:
Blades
24" manual back gauge
(2) 40" front support arms
40" squaring arm
Finder guard
Foot pedal
Shadow line lighting
Single axis 32" power back gauge
OPTIONAL EQUIPMENT:
59" squaring arm
79" squaring arm
118" squaring arm
59" front support arm
79" front support arm
118" front support arm
Pneumatic-type thin sheet supporter
Power back gauge with lifting function
Angle gauge
