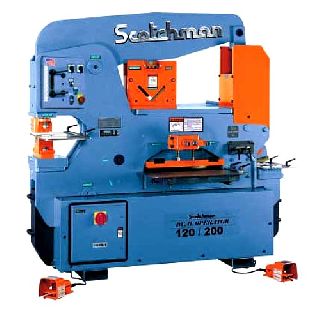

DO 120/200-24M
STANDARD FEATURES
Dual Operator allows for Two Operators to Work at the Same Time at Full Capacity
120 Ton Punch Station (1-1/2" in 1")
Keyed Punch Ram for Safety
12" Throat Depth
Punch Gauging Table with Fence and Scale
Die Holder Complete with 2" and 2-1/2" Die Inserts
Punch Nut with Wrench
Adjustable Swing-Away Stripper
One Round Punch & Die: Max. Dia. 1-1/4"
Punch Jog Control
Two Electric Remote Foot Pedals
Two Adjustable Electric Stroke Controls with Scale
Two 2-Stage Hydraulic Pumps
Two Valves
Angle Shear Capacity 6" x 6" x 1/2"
Rectangle Notcher 3" x 5-3/4" x 1/2"
Notcher Table with Guides
200 Ton, 24" Flat Bar Shear with Sabre Blade (1" x 12", 1/2" x 24")
Shear Table with Miter Fence
Tool Table Work Area
Slug Receptacles
Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
230/460 Volt /3 Phase Electrics (must specify voltage)
All Guards Necessary to Comply with
ANSI B 11-5 Standards
Forklift Accommodations
One Year Warranty
Made in USA
CAPACITIES & SPECIFICATIONS
Rated On: 65,000 PSI Tensile - A 36 Mild Steel
Punching Capacity: 120 Ton, 1-1/2" in 1"
Special Tooling: 4" Max. Dia.
Throat Depth: 12"
Flat Bar Shear (Sabre Blade - Std): 24" Length, 1" x 12", 3/4" x 20", 1/2" x 24"
Angle Shear 90 Degrees: 6" x 6" x 1/2"
Angle Shear 45 Degrees: 4" x 4" x 1/2"
Brake 12": 75 Ton
Brake 24": 55 Ton
Open End Brake: Max. 1/4" x 6" Flat or Angle Iron
Pipe Notcher Schedule 40 ID:
