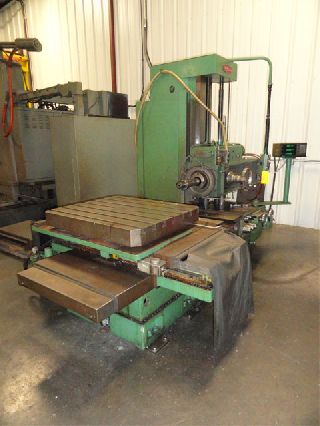

3.15" TOSHIBA TABLE TYPE HORIZONTAL BORING MILL
MODEL: BZ-8, S/N 170144, NEW 1981
SPECIFICATIONS:
DIAMETER OF SPINDLE .................. 3.15"
TAPER IN SPINDLE ..................... 5 MORSE TAPER
DIAMETER OF MILLING QUILL ............ 7.48"
SPINDLE LONGITUDINAL TRAVEL .......... 15.8"
HEADSTOCK VERTICAL TRAVEL ............ 31.5"
ROTARY TABLE WORKING SURFACE ......... 35.4" X 41.3"
TABLE CROSS TRAVEL ................... 39.4"
TABLE LOAD ........................... 4,400 LBS.
TABLE LONGITUDINAL TRAVEL ............ 27.6"
RAPID TRAVERSE RATE .................. 144 IPM
SPINDLE SPEEDS (12) .................. 32 TO 1180 RPM
FEED RATES ALL DIRECTIONS (24) ....... .0009 - .96 IPR
APPROX. WEIGHT ....................... 15,400 LBS
DIMENSIONS ........................... 136"F-B x 122"W X 94.5"H
EQUIPPED WITH:
- BUILT-IN T-SLOTTED POWER ROTARY TABLE
- POWER RAPID TRAVERSE
- HARDENED WAYS ALL AXES
- SIMPLE PENDANT CONTROL
- DIGITAL READOUTS
- 10 HORSE POWER SPINDLE MOTOR
CONDITION: **** EXCELLENT ****
