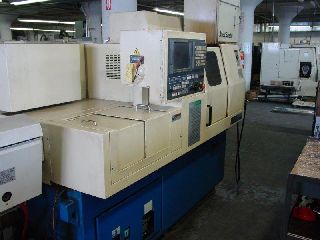

TSUGAMI BS-26C(III) CNC SWISS TYPE AUTOMATIC LATHE

NEW: 2001



General specifications for Tsugami BS-26C MK III

CNC Control:                                Fanuc 180iS (Tsugami lK-1)

Maximum Bar Diameter:                       1.023"

Main Spindle:

   Spindle Speed:                           200 to 7,000 rpm

   Indexing:                                C-axis

   C-axis Increment:                        0.001 degrees

Tooling Set-up:

   Number of Tool Stations:                 6-OD, 4-ID, 5-ID/OD B/W Tools

   Rotary Tools:                            4-Cross Driven Tools & 2-Driven

                                              Endworking Tool Positions

   End Working Tool Positions:              4 (2-upper postions are driven)

   Maximum Speed Cross Tool T10-T12:        200 - 5,000 rpm

   Maximum Speed Cross Tool T13:            120 - 3,000 rpm

   Driven Tool Drive Motor Rating:          1.5 HP

   Turning Tool Size                        5/8" square

Programmable Servo Axes:

   "Z1" Main Headstock in and out:          8.21"

   "T1" O.D. Tool Slide up and down:        5.90"

   "T3" Backwork Slide in and out:          5.11"

   "X1" O.D. Tool Slide right and left:     2.00"

   "X2" I.D. Tool Slide up and down:        7.90"

   Auxiliary Slide Motion:

   "Z2" I.D. Tool Slide in and out:

   (synchronous to "Z1"):                   7.88"

Sub-spindle Specifications:

   Maximum Diameter:                        1.023"

   Maximum Drill Capacity - mild steel:     3/8"

   Maximum Tap Capacity - mild steel:       5/16"

   Speed Range (serial interface):          2,000 to 7,000 rpm

   Power Rating:                            3.0 HP

   Sub-spindle Indexing:                    5 degree increment

Horsepower of Main Spindle:                 5.0 HP

Machine Dimensions (L x W x H):             72" x 46" x 67"

Machine Weight:                             5300 lbs.





Equipped with (to be confirmed by buyer):

   FMB Turbo 3-26 Magazine Bar Loader

   Chip Conveyor

   Sub-spindle ejection unit

   Parts Catcher

   Long parts ejection tray

   Mist Collector
