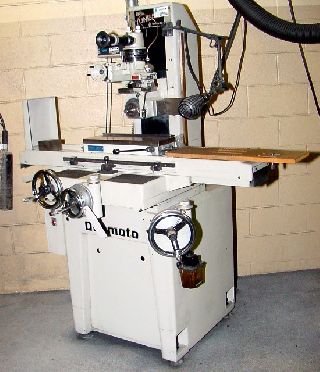

6" X 18" OKAMOTO "LINEAR 618" "HIGH-PRECISION" HAND FEED
SURFACE GRINDER WITH FINE FEEDS FOR BOTH
CROSS (.0001" GRAD.) & VERTICAL (.000050") AXES
** OPTIDRESS MODEL "E" WITH FACSTOR DRO **
MODEL: LINEAR-618 S/N: 4553 NEW: 1995
WIDTH & LENGTH GROUND .......................... 6" X 18"
TABLE TO SPINDLE CENTER ............................. 18"
HEIGHT UNDER 8" WHEEL TO CHUCK SURFACE .............. 11"
LONGITUDINAL TABLE TRAVEL ........................... 14"
CROSS TRAVEL ......................................... 8"
GRINDING WHEEL CAPACITY ........... 8" X 1" X 1-1/4" BORE
CROSS FEED PER REV. OF HANDWHEEL
(.001" GRAD.) .................................... 0.100"
CROSS FEED HANDWHEEL VERNIER READS TO............ 0.0001"
VERTICAL FEED PER REV. OF HANDWHEEL
(.0002" GRAD.) .................................. 0.0500"
PPROX. WEIGHT ................................ 1,500 LBS.
APPROX. DIMENSIONS ..................... 58" X 46" X 71"H
EQUIPPED WITH:
** OPTIDRESS MODEL "E" WITH FACSTOR DRO,
THIS IS A OVER A 20K UNIT TODAY ON ITS OWN! **
LONGITUDINAL TABLE TRAVEL ON LINEAR BALL BEARINGS DRIVEN
BY CABLE SYSTEM
FINE FEED KNOB FOR CROSS AXIS, .0001" GRAD.
FINE FEED KNOB FOR VERTICAL AXIS, .00005" GRAD.
HARDENED AND GROUND WAYS ON TABLE, SADDLE AND COLUMN
MANUALLY OPERATED ONE SHOT LUBRICATION SYSTEM
6" X 18" WALKER CERAMAX FINE-DIVISION PERMANENT MAGNETIC
2 H.P. 3/60/230-460 VOLT HIGH PRECISION CARTRIDGE-TYPE
SPINDLE DRIVE MOTOR& ELECTRICAL CONTROLS
** TRULY "MINT" CONDITION & APPEARANCE (ORIGINAL PAINT) **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
