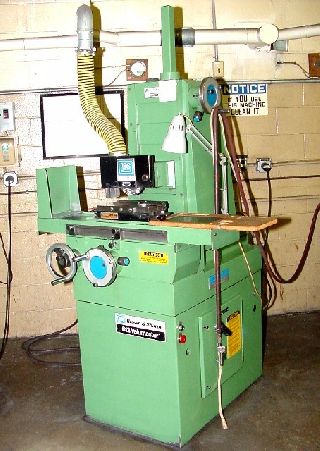

6" X 12" BROWN & SHARPE (MADE IN USA)
"SUPER-PRECISION" HAND FEED SURFACE GRINDER
MODEL: 612 VALUEMASTER S/N: 523-612-5002 NEW: 1986
WIDTH & LENGTH GROUND ........................ 6" X 12"
HEIGHT OF WORK GROUND W/7" WHEEL .................. 15"
DISTANCE, CENTER OF WHEEL SPINDLE:
TO TOP OF TABLE, MINIMUM ..................... 3-1/4"
MAXIMUM ........................ 18"
LONGITUDINAL TABLE TRAVEL ......................... 20"
CROSS TRAVEL ....................................... 7"
CROSS HANDWHEEL GRADUATED TO READ TO ........ 0.0002"
CROSS, FINE FEED KNOB GRADUATED TO READ TO .. 0.0001"
VERTICAL ADJUSTMENT OF WHEEL SPINDLE .......... 15-1/2"
VERTICAL HANDWHEEL GRADUATED TO READ TO ..... 0.0002"
VERTICAL, FINE FEED KNOB GRADUATED TO READ TO 0.0001"
STD. GRINDING WHEEL SIZE .................... 8" X 1/2"
APPROX. MACHINE WEIGHT ..................... 1,225 LBS.
APPROX. MACHINE DIMENSIONS ............ 36" X 36" X 70"
EQUIPPED WITH:
ROLLER BEARING TABLE WITH QUICK ACTING LEVER
FOR TABLE TRAVERSE
FINE FEED KNOBS FOR CROSS & VERTICAL FEEDS (.0001")
6" X 12" O.S. WALKER FINE-DIVISION PERMANENT MAGNETIC
CHUCK
BIJUR AUTOMATIC LUBRICATION SYSTEM
2 H.P. BROWN & SHARPE "DIRECT DRIVE" SUPER-PRECISION
SPINDLE DRIVE
MACHINE IS WIRED FOR 3/60/208 VOLTS
* INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE *
* * EXCEPTIONAL CONDITION& APPEARANCE (ORIGINAL PAINT) * *
