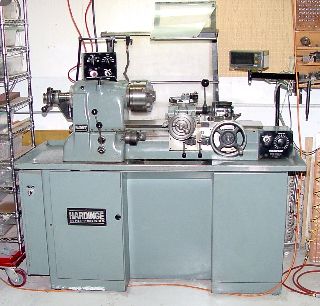

HARDINGE PRECISION CHUCKING LATHE
MODEL: HC, S/N: HC 5678-T, NEW: 1981
SPECIFICATIONS:
MAX FIXTURE DIAMETER ................. 9"
MAX DISTANCE FROM FACE OF TURRET
TO SPINDLE ....................... 14"
SPINDLE CAPACITY
WITH ROUND 5C COLLETS ............ 1-1/16"
WITH 5C STEP CHUCKS .............. 1-1/16" TO 6"
WITH JAW CHUCKS .................. 6"
SPINDLE TAPER ........................ HARDINGE THREADED NOSE
TRAVEL OF CROSS SLIDE ................ 4-1/2"
CROSS SLIDE POWER FEED RANGE ......... 11/32 TO 6-1/4 IPM
CARRIAGE POWER FEED RANGE ............ 1/4 TO 10 IPM
VARIABLE SPINDLE SPEEDS, (3 SELECTOR)
LOW SPEEDS ....................... 125 - 1,100 RPM
HIGH SPEEDS ...................... 1100 - 3,000 RPM
MAX DIAMETER FOR THREADING ........... 6"EXTERNAL, 5"INTERNAL
APPROXIMATE WEIGHT ................... 1,750 LBS.
EQUIPPED WITH:
- MITUTOYO TWO AXIS DIGITAL READOUT
- HARDINGE 6-JAW CHUCK
- HARDINGE 4-JAW CHUCK
- HARDENED AND GROUND DOVETAIL BED
- LEVER-TYPE COLLET CLOSER FOR TYPE 5C COLLETS
- INDEPENDENT ELECTRICAL VARIABLE POWER FEED TO CARRIAGE
- EIGHT STATION CROSS FEEDING TURRET
- EIGHT POSITION TURRET-TYPE CARRIAGE STOP
- SELF-CONTAINED COOLANT SYSTEM
- LARGE ASSORTMENT OF TURRET TOOLS
MACHINE WIRED FOR THREE PHASE 60 CYCLE 220 VOLT OPERATION
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
CONDITION: **** SUPERB ****
