| Estatus: | CERRADO | | Id# | 15070 | | Ref: | 146570 | | Nombre: | 20Inch Swing 80Inch Centers GMC GT-2080 ENGINE LATHE, 4-1/8Inch Bore, 12spd, 10hp | | Fabricante: | GMC | | Modelo: | GT-2080 | | Año: | ( Nuevo ) | | Localización: | USA | | Precio: | $15,850.00 | | | | |
|---|

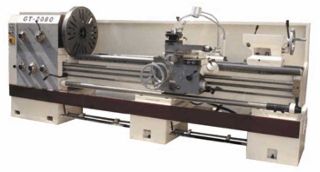

| Descripción: | NEW InchGMCInch 20Inchx 80Inch PRECISION GAP BED LATHE
MODEL: GT-2080
**FREE TAPER ATTACHMENT**
SPECIFICATIONS:
Max swing over bed: 20Inch
Max length of workpiece: 80Inch
Max swing over cross slide: 12Inch
Max swing in gap: 28Inch
Width of bed: 15-1/2Inch
Effective length in gap to spindle: 9Inch
Effective length in gap to chuck jaws: 6Inch
Spindle bore: 4-1/8Inch D1-8
Taper of spindle center: MT6
Spindle speeds: 36-1,600 RPM, 12 steps
Longitudinal feeds: 0.0023-0.093 IPR, 65 kinds
Cross feeds: 0.0011-0.04 IPR, 65 kinds
Inch threads: 28-2 TPI, 25 kinds
Metric threads: 1-14mm, 22 kinds
Module threads: 0.5-7mm, 18 kinds
Diameter pitch threads: 56-4 DP, 24 kinds
Max travel of top slide: 5-3/4Inch
Max travel of cross slide: 12-1/2Inch
Longitudinal rapid traverse: 18/min
Cross rapid traverse: 8/min
Diameter of tailstock quill: 3Inch
Max travel of tailstock quill: 6Inch
Taper of tailstock quill center: MT#5
4-Way tool post: 1Inch x 1Inch
Longitudinal leadscrew diameter/pitch: Dia: 1-5/8Inch Pitch: 3 TPI
Main motor: 10 hp, 220v/440v 3ph
Rapid traverse motor: 1/3hp
Coolant pump: 1/3hp
Overall Dimensions: 128Inch x 43Inch x 53InchH
Weight: 8,300 lbs.
FEATURES:
ISO 9001 certified
Large spindle bore 4 1/8Inch
Adjustable mechanical spindle clutch for spindle start forward/reverse and brake
4-way rapid traverse on longitudinal and cross ways
All dual inch/metric dials
Solid cast iron machine base
Heavy duty guideway width 15 1/2Inch
Heavy duty main motor 10HP
12 spindle speeds from 36-1600rpm
Threading and feeding rate change without changing gears
Automatic kick-out longitudinal carriage stop system
Oil pump on apron for lubrication to all way and leadscrews
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
One year warranty for parts
STANDARD FEATURES:
Taper turning attachment (factory installed, no charge)
12Inch 3-jaw chuck with top reversible jaws
16Inch 4-jaw chuck with top reversible jaws
25Inch face plate
10Inch drive plate
4 3/4Inch-10 1/4Inch large steady rest with roller jaws
1Inch-3Inch follow rest
Automatic kick-out longitudinal carriage stop system
Oil pump on apron for lubrication to all ways and leadscrews
Removable gap
4-way tools post
Foot brake
Halogen work light
Coolant system
Full length splash guard
(2) dead centers and (1) reducing sleeve
Thread chasing dial
Tool box
OPTIONAL ACCESSORIES: (CALL FOR PRICING)
DRO for #GT-t060, NEWALL (England), 2 axis, (factory installed, no charge)
DRO for #GT-2080, NEWALL (England), 2 axis, (factory installed, no charge)
5-C Hand lever type collet closer, InchJFKInch USA, (factory installed, no charge)
33 pc. 5C collet set, from 1/16Inch to 1 1/16Inch by 32ndths, #900-0014
Taper turning attachment, (factory installed, no charge)
6pc Aloris type quick change tool post #900-0051-400
Live center for tailstock MT#5, part #900-0050-05
5pc Indexable carbide turning set #2003-0005
3/8Inch carbide insert #2003-0014
|
|---|
|
|---|
| |
| |
|
|
|
|
|
|
