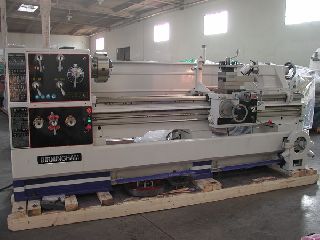

| Estatus: | CERRADO | | Id# | 15064 | | Ref: | 146564 | | Nombre: | 32Inch Swing 120Inch Centers Birmingham YCL-32120 ENGINE LATHE, 4-1/8Inch Bore, 15hp | | Fabricante: | Birmingham | | Modelo: | YCL-32120 | | Año: | ( Nuevo ) | | Localización: | USA | | Precio: | $17,850.00 | | | | |
|---|
| Descripción: | NEW BIRMINGHAM 32Inch x 120Inch HIGH SPEED PRECISION GAP BED LATHE
MODEL:YCL-32120 ** With Free Taper Attachment!! **
SPECIFICATIONS:
Swing over bed: 32Inch
Swing over cross slide: 22-1/2Inch
Swing in gap diameter: 41Inch
Length of gap: 10Inch
Center Height: 16Inch
Distance between centers: 120Inch
Width of bed: 16Inch
Max section of tool: 1Inch x 1Inch
Max travel of cross slide: 16-1/2Inch
Max travel of compound rest: 9Inch
Spindle bore: 4-1/8Inch
Spindle nose: D1-8
Taper of spindle bore: MT5
Spindle speed step: 16
Range of spindle speed: 25-1600 RPM
Leadscrew pitch: 40mm x 2 TPI
Inch threads range: 7/16 ~ 80 TPI
Metric threads range: 0.45 ~ 120mm (54 kinds)
Diametrical pitches range: 7/8 ~ 160 DP (42 kinds)
Module pitches range: 0.25 ~ 60MP (46 kinds)
Cross feeds range in metric lead screw: 0.044 ~ 1.48mm/rev (25 kinds)
Cross feeds range in inch lead screw: 0.00165Inch x 0.05497Inch/rev (25 kinds)
Longitudinal feeds range in metric lead screw: 0.022 - 0.74mm/rev (25 kinds)
Longitudinal feeds range inch lead screw:0.00083Inch - 0.02774Inch/rev (25 kinds)
Travel of tailstock sleeve: 9-1/4Inch
Diameter of tailstock sleeve: 3-1/2Inch
Morse taper of tailstock sleeve: MT#5
Power of main motor: 11 kw (15 hp)
Power of coolant pump: 0.09KW (1/8hp)
Dimensions: 4740 x 1230 x 1910
Weight: 4,500 kgs
STANDARD ACCESSORIES:
3 Jaw Chuck
4 Jaw Chuck
Faceplate
Steady Rest
Follow Rest
Thread Chasing Dial
Oil Gun
Set of wrenches
Drive plate
4-way tool post
Rapid travel
Splash guard
Taper turning attachment
STANDARD FEATURES:
15 HP MAIN MOTOR
ONE-PIECE CAST IRON BASE
NO CHANGE WITH 4Inch BORE
NO CHANGE GEARS REQUIRED
16 SPDS FROM 25-1600 RPM
54 KINDS OF INCH THREADS
54 KINS OF METRIC THREADS
MAIN SPINDLE HARDENED & PRECISION GROUND
BED MADE OF FINE GRAIN HIGH TENSILE CAST IRON
BEDWAYS INDUCTION HARDENED & PRECISION GROUND
ALL GEARS & SHAFTS HARDENED & PRECISION GROUND
MAIN SPINDLE SUPPORTED AT 3-POINT BY PRECISION BEARINGS
OPTIONAL ACCESSORIES: (call for pricing)
2-AXIS NEWALL DRO, INSTALLED
|
|---|
|
|---|
| |
| |
|
|
|
|
|
|
