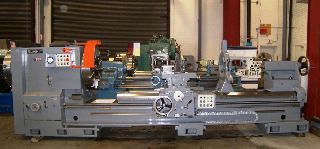

| Estatus: | CERRADO | | Id# | 14834 | | Ref: | 145843 | | Nombre: | 12Inch Hole 120Inch Swing Summit OIL COUNTRY ENGINE LATHE, 40Inch SWING, TAPER, FRON | | Fabricante: | Summit | | Modelo: | OIL COUNTRY | | Año: | 1981 ( Usado ) | | Localización: | USA | | Precio: | $84,500.00 | | | | |
|---|
| Descripción: | 39Inch/ 51Inch X 120Inch SUMMIT HOLLOW SPINDLE
REMOVABLE GAP BED ENGINE
LATHE, MODEL: 38-12 X 120Inch, S/N 059, NEW 1981
SPECIFICATIONS:
MAX SWING OVER BED ..................... 39-1/2Inch
MAX SWING IN GAP ....................... 51-1/8Inch
MAX SWING OVER CROSS SLIDE ............. 28-3/4Inch
LENGTH OF GAP .......................... 25-5/8Inch
LENGTH OF GAP IN FRONT OF CHUCK ........ 16Inch
DISTANCE BETWEEN CENTERS ............... 120Inch
HOLE THROUGH SPINDLE ................... 12-5/8Inch
SPINDLE NOSE, AMERICAN STANDARD, SIZE .. A1-20Inch
SPINDLE SPEEDS RANGE (2) (INF VAR) ..... 4.5-180 RPM
TAILSTOCK SPINDLE CENTER TAPER ......... #6 MORSE
TAILSTOCK SPINDLE TRAVEL ............... 14-3/8Inch
TAILSTOCK SPINDLE DIAMETER ............. 4-3/4Inch
WIDTH OF BED ........................... 25-5/8Inch
TRAVEL OF CROSS SLIDE .................. 24Inch
COMPOUND REST TRAVEL ................... 11-3/4Inch
FEEDS, LONGITUDINAL (42) ............... .002-.220 IPR
CROSS (42) ............................. .001-.110 IPR
THREADS, INCH .......................... 9/16 - 64 TPI
METRIC ................................. .75 - 64 MM
MODULE ................................. .25 - 16
RAPID TRAVERSE RATE .................... 96 IPM
APPROX DIMS ............................ 19x 67Inchx 65Inch
APPROX WEIGHT .......................... 27,000 LBS
EQUIPPED WITH:
- REMOVABLE GAP BED
- INDUCTION HARDENED BEDWAYS
- UNIVERSAL GEARBOX FOR A COMPLETE RANGE OF INCH & METRIC THREADS
- TAPER TURNING ATTACHMENT
- 33-1/2Inch DIAMETER FRONT FOUR-JAW CHUCK
- 33-1/2Inch DIAMETER REAR FOUR-JAW CHUCK
- 16Inch DIAMETER CAPACITY THREE-POINT PLAIN-TYPE STEADY REST
- 12Inch DIAMETER CAPACITY FOLLOW REST
- MOTORIZED POWER RAPID TRAVERSE TO CARRIAGE
- MICROMETER CARRIAGE STOP
- THREADING DIAL
- FOUR-WAY TURRET-TYPE TOOLPOST
- (1) LIVE CENTER AND (1) PLAIN CENTER FOR TAILSTOCK
- 20 H.P 3/60/220-440 VOLT DC SPINDLE DRIVE MOTOR AND
ELECTRICAL CONTROLS WITH AC ELECTRICAL INPUT
- MACHINE IS WIRED FOR 220 VOLT OPERATION.
|
|---|
|
|---|
| |
| |
|
|
|
|
|
|
