| Estatus: | CERRADO | | Id# | 14568 | | Ref: | 143939 | | Nombre: | 0.25Inch Cap. 121Inch Width Pressmaster MS-25-10 Made in N. America NEW SHEAR, To | | Fabricante: | Pressmaster | | Modelo: | MS-25-10 Made in N. America | | Año: | ( Nuevo ) | | Localización: | USA | | Precio: | $32,500.00 | | | | |
|---|
| Descripción: |

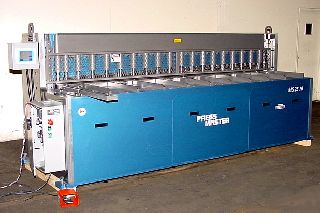

NEW 10 x 1/4Inch PRESSMASTER HYRAULIC SHEAR
Made In North America
Pressmaster Brochure - Click or copy and paste into your browser http://www.machineryvalues.com/pict/Pressmaster_Shears.pdf
CUTTING CAPACITY (MILD STEEL) ............. 1/4Inch
CUTTING CAPACITY (STAINLESS STEEL) ........ 3/16Inch
CUTTING LENGTH ............................ 121.375Inch
RAKE ANGLE (PER FOOT) ..................... .250
NUMBER OF HOLDDOWNS ....................... 19
TABLE DEPTH TO BLADE ...................... 31.125Inch
TABLE WORK HEIGHT ......................... 35.5Inch
HYDRAULIC FLUID TANK ...................... 42 GAL.
MOTOR HP .................................. 15
VOLTAGE ................................... 230/460
FOOT PRINT: 144Inch X 48Inch
APPROX. WEIGHT: 15,500 LBS.
FEATURES:
SEIMENS PLC TOUCH SCREEN FRONT OPERATED 36Inch BACK GAUGE
REQUIRES NO BLADE GAP ADJUSTMENTS OR RAKE ADJUSTMENTS
TO CUT ANY THICKNESS OF METAL
SAFETY FOOT PEDAL - RAM RETURNS TO TOP WHEN FOOT IS
REMOVED FROM PEDAL
HEAVY DUTY CONSTRUCTION - NO LEVELING OR BOLTING DOWN
REQUIRED
LOW RAKE ANGLE MINIMIZES WORKPIECE DISTORTION
ALL MECHANICAL AND ELECTRICAL PARTS ARE INDUSTRY
STANDARD AND READILY AVAILABLE THROUGHOUT N. AMERICA
D2 HIGH CARBON PREMIUM QUALITY TOOL STEEL BLADES
LOW SPEED MOTOR AND LOW PRESSURE HYDRAULICS COUPLED
WITH EXTRA LARGE CYLINDERS INSURE LONG LIFE.
For a live demo of the Pressmaster Shear
cut and paste the following links into your browser:
Video one link:
http://www.youtube.com/watch?v=45KLQDr9gDI
Video two link:
http://www.youtube.com/watch?v=_Tz-H3LHu7I
|
|---|
|
|---|
| |
| |
|
|
|
|
|
|
Que aparecen en esta página 0.25Inch Cap. 121Inch Width Pressmaster MS-25-10 Made in N. America NEW SHEAR, To tiene la condición de "CERRADO", lo que significa que el presente anuncio de venta ya NO es válido.
Sin embargo, con la tecla "CONTACTO con el Vendedor", usted puede pedir al vendedor, que podría tener que vender Pressmaster MS-25-10 Made in N. America.
Si usted no puede encontrar la máquina que está buscando -
suscribirse a la MachineKs.com y lugar GRATIS Anuncio de compra.
Si usted tiene equipo para la venta - el categoría Nueva Cizallas junto con una Pressmaster MS-25-10 Made in N. America en la lista, es sólo una entre cientos de otros, donde en pocos minutos publique sus anuncios de venta. |
|---|
|
|
|
