| Estatus: | CERRADO | | Id# | 14214 | | Ref: | 139430 | | Nombre: | 49Inch Table 3HP Spindle Birmingham BPS-1649-C Belt Drive Head VERTICAL MILL, | | Fabricante: | Birmingham | | Modelo: | BPS-1649-C Belt Drive Head | | Año: | ( Nuevo ) | | Localización: | USA | | Precio: | $4,450.00 | | | | |
|---|

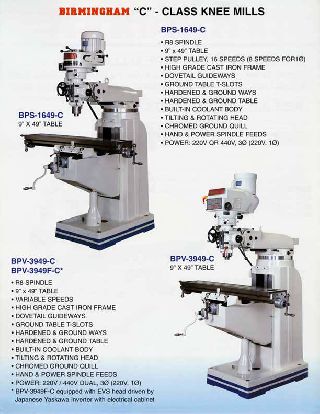

| Descripción: | New Birmingham 9Inch x 49Inch Vertical Milling Machine
Model: BPS-1649-C
A Superior Taiwan-Made Head With the Cost Savings of a Chinese Body
ISO 9002
Safety / Reliability / Performance
BEST BUY - BEST FEATURES
Specifications:
Table Size: 9Inch x 49Inch
Table Load Capacity: 600 lbs.
Table T-Slot Size: 5/8Inch x 3
Longitudinal Travel Hand Only: 35-1/2Inch
Longitudinal Travel w/ Power Feed: 33Inch
Cross Travel: 13-1/4Inch
Vertical Travel: 16Inch
Ram Travel: 12Inch
Quill Feed Speeds: 0.0015Inch, 0.003Inch, 0.006Inch/Rev.
Quill Travel: 5Inch
Spindle Taper: R8
Quill Diameter: 3-3/8Inch
Head Swivel RH/LH: 90 Deg / 90 Deg
Head Tilting F/B: 45 Deg / 45 Deg
Ram Turret Swivel: 360 Degrees
Spindle Speeds Type: Step Pulley
Spindle Speeds (RPM): 90-5600 (16 Speeds)
Net Weight: 2,500 lbs.
H x D x W: 86Inch X 68Inch X 67Inch
Standard Features:
- High quality Taiwan-made mill head
- High precision China-made mill body
- Super strong column and base
- Low maintenance machines
- High precision leadscrews
- Satin chrome finished dials
- Built-in coolant column base
- Double knee and table locks
- Ram equipped w/ double locks
- Large diameter quill is chromed
- One-piece quill pinion and shaft
- Spindle head is internally cooled
- Hardened & ground ways
- Heavy-duty motor 3 phase or 1 phase
- High precision class 7 spindle bearings
- Three-stage power downfeed w/ auto stop
- One year warranty and 2nd year extended
Standard Equipment:
- Tool box 1 set
- Front Chip Guard 1 pc
- Rear Chip Guard 1 pc
- Draw Bar 1 pc
- One Shot Lube
Optional Equipment: (Call for pricing)
- Coolant System
- Power Feed for X,Y,Z
- Halogen worklight
- Electric control box
- Cutter holder
- Vise
- Clamping kit set
- Digital readout
- Base coolant drop pan
- Power air draw bar unit
- NMTB #30 spindle |
|---|
|
|---|
| |
| |
|
|
|
|
|
|
