| Estatus: | CERRADO | | Id# | 14125 | | Ref: | 138014 | | Nombre: | 16Inch Swing 40Inch Centers Birmingham DLC-1640 (MACHINE) ENGINE LATHE, 10 HP, 16 | | Fabricante: | Birmingham | | Modelo: | DLC-1640 (MACHINE) | | Año: | ( Nuevo ) | | Localización: | USA | | Precio: | $11,750.00 | | | | |
|---|

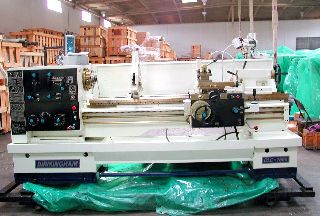

| Descripción: | New InchBirminghamInch 16Inch x 40Inch Precision High Speed Engine Lathe
Model: DLC-1640 w/Removable Gap Block
** FREE TAPER ATTACHMENT INCLUDED**
10 HP motor delivers power thru all spindle speeds
Spindle gears, shafts and bearings are lubricated by pumped bath of oil
Induction hardened and ground bedways
D1-8 Camlock spindle with 4-1/8Inch spindle bore
16 Spindle speeds, 26 - 1,700 RPM
Rapid power traverse to carriage and cross slide
Multiple disc clutch for efficient spindle starting and reversing
Equipped with leadscrew cover
SPECIFICATIONS:
Swing over bed: 16Inch
Swing over cross slide: 9Inch
Swing over gap: 27-1/2Inch
Length of gap: 10Inch
Distance between centers:40Inch
Spindle Bore: 4-1/8Inch
Spindle nose type (Camlock): D1-8
Spindle taper: MT-6
Spindle speeds: 16
Spindle speed range: 26 - 1,700 RPM
Spindle center to bedway: 8-5/8Inch
Threads per inch (No.) range (TPI): (42) 7/16 - 80
Metric threads (No.) range (mm): (37) 0.5 - 80
Module threads (No.) range (mm): (32) 0.25 - 40
Diametral threads (No.) range (DP): (42) 7/8 - 160
Long. feeds (No.) range (in/rev): (45) 0.0017 - 0.058
Cross feeds (No.) range (in/rev): (45) 0.0009 - 0.029
Leadscrew diameter (in): 1-9/16Inch
Leadscrew TPI: 2
Feed rod diamter: 1Inch
Tooling size: 1Inch x 1Inch
Compound slide travel: 5-7/8Inch
Cross slide travel: 13-3/4Inch
Tailstock taper: MT-5
Quill travel: 6Inch
Quill diameter: 3Inch
Main drive: 10 hp, 220/440V 3 ph
Maximum workpiece weight: 1,100 lbs.
Overall Dimensions: 102Inch L x 47Inch W x 54Inch H
New Weight Approx: 4620 Lbs.
Standard Equipment:
12Inch 3 Jaw Chuck with reversible jaws
16Inch 4-Jaw Chuck
15Inch Face plate
Steady rest capacity 1-1/8 - 6-1/4Inch
Follow rest capacity 3/4Inch - 3-1/8Inch
Dead centers, MT-4
Center sleeve, MT-6 to MT-4
Foot Brake
Threading Dial
Coolant System w/Full Length Splash Guard
Halogen work lamp
Leveling pads
Toolbox with tools
Optional Equipment (call for pricing):
Taper attachment
12Inch Cap. Larger steady rest with roller jaws
5C Hand lever type collet closer InchJFKInch USA
Quick Change tool post set
DRO - Newall or Acu-Rite
|
|---|
|
|---|
| |
| |
|
|
|
|
|
|
