| Estatus: | CERRADO | | Id# | 14111 | | Ref: | 137792 | | Nombre: | 16Inch Swing 60Inch Centers Birmingham YCL-1660 (machine) ENGINE LATHE, 7.5 HP, 1 | | Fabricante: | Birmingham | | Modelo: | YCL-1660 (machine) | | Año: | ( Nuevo ) | | Localización: | USA | | Precio: | $9,750.00 | | | | |
|---|

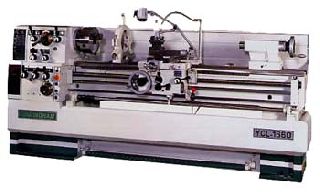

| Descripción: | New Birmingham 16Inch x 60Inch Precision High Speed Engine Lathe
Model: YCL-1660 w/Removable Gap Block
This high speed precision lathe comes with many features including
one-piece cast iron body, no change gears required, 60 kinds of
inch threads from 112 -2 TPI, fine grain high tensile cast iron bed.
Main spindle, bedways, gears and all shafts are hardened and precision
ground. A valuable addition to any machine shop.
SPECIFICATIONS:
Swing Over Bed 16.1Inch
Swing Over Cross Slide: 8.8Inch
Swing Over Gap: 25.1Inch
Between Centers 60Inch
Width of Bed: 11.8Inch
Effective Length in Gap: 9-1/2Inch
Width of Bed: 11.8Inch
Spindle Nose: Camlock D1-6
Diameter of Spindle Thru Bore: 2.28Inch
Spindle Speeds: 25 - 2,000 RPM, 12 Steps
Cross Slide Travel: 12.1Inch
Compound Rest Travel: 5Inch
Metric Threads: 0.1 - 7 mm, 34 Kinds
Inch Threads: 4 - 112 - TPI, 60 Kinds
Diameter of Tailstock Quill: 2.3Inch
Taper of Tailstock Quill Center: MT#4
Max. Travel of Tailstock Quill: 4.8Inch
Standard Equipment:
7Inch Steady Rest
Follow Rest
10Inch 3 Jaw Chuck
12Inch 4 Jaw Chuck
4 Way Tool Post
16Inch Face Plate
10Inch Drive Plate
2 Dead Centers
Coolant System
Halogen Work Light
Reducing Headstock Sleeve
Foot Brake
One Piece Stand with Chip Tray
Full Length Splash Guard
Removable Gap Block Bed
Thread Chasing Dial
Inch/metric Gear Box, (no change gear required)
Set of Tools
Optional Equipment (call for pricing):
Newall or Sargon Digital Readouts (includes installation)
|
|---|
|
|---|
| |
| |
|
|
|
|
|
|
Que aparecen en esta página 16Inch Swing 60Inch Centers Birmingham YCL-1660 (machine) ENGINE LATHE, 7.5 HP, 1 tiene la condición de "CERRADO", lo que significa que el presente anuncio de venta ya NO es válido.
Sin embargo, con la tecla "CONTACTO con el Vendedor", usted puede pedir al vendedor, que podría tener que vender Birmingham YCL-1660 (machine).
