| Estatus: | CERRADO | | Id# | 13934 | | Ref: | 137128 | | Nombre: | 0.1345Inch Cap. 72Inch Width Birmingham H-0635 10 Ga x 72Inch NEW SHEAR, Hydraulic, | | Fabricante: | Birmingham | | Modelo: | H-0635 10 Ga x 72Inch | | Año: | ( Nuevo ) | | Localización: | USA | | Precio: | $18,250.00 | | | | |
|---|
| Descripción: | New Birmingham 60Inch x 10 Ga Heavy Duty Hydraulic Shear
Model: H-0635 Made In Taiwan
6 x 10 GA Mild Steel & 13 GA Stainless Steel

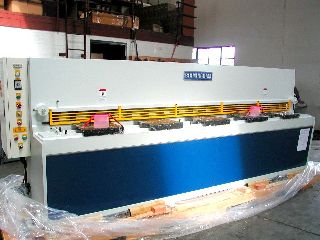

Note: Image show is model H-1035 (10- 10 Ga. model)
MAIN FEATURES:
Well balanced and sturdy welded machine all steel frame provides
constant stability and rigidity. The centralized hydraulic logical
system offers the best performance with a quiet hydraulic pump.
Independent hydraulic pressure hold-downs synchronized with upper blade, ensuring the workpiece is securely clamped at the moment of cutting. High grade carbon/chrome alloy steel blades ensure maximum accuracy cutting and longer blade lide, 60hrc hardened. easy to utilize blade gap setting (BGA) Hydraulic adjustable rake angle design is a standard feature for all models, rake angle is hydraulically variable djustable with gauge selection indicators, minimizing bowing and twisting. Adjustable cutting length and stroke. Shadow line lighting covering full length of worktable, this is very helpful to operator for positioning and shearing workpiece. Worktable mounted with ball transfer type plates, for easier loading and moving workpiece. Full-length and full view safety finger guard, to protect operator from cutting hazard. Removable foot remote pedal is fitted with safety protection, the upper blade beam will rise to top position immediately. On removal of foot from the pedal. All motors and pumps are overload protected. Jog, single, or continuous cutting operation modes.
STANDARD ACCESSORIES:
High grade, high carbon/ chrome alloy steel 2-edge upper blade,
and 4-edge bottom blade, 60hrc.
Hydraulic rake angle adjustment.
Two 40Inch front suppoet arms with front setters.
One 40Inch squaring arm with inlaid dual scale.
24Inch manual back gauge with dual scales and crank wheel.
Single axis 32Inch NC programmable front operated power back gauge (H-0865/H-1065/H-1365 only), with 0.3Inch retract function.
Full length finger guard and shadow line lighting (light beam).
Hydraulic independent hold-downs.
Overload protected hydraulic system.
Removable foot control pedal with safety protection.
Full electrics & cabinet with operation panel.
Stroke (cutting piece) counter.
Tool box and leveling pads.
SPECIFICATIONS:
Cutting Capacity: 6
Mild Steel: 10 Ga.
Stainless Steel: 13 Ga.
Blade Length: 610Inch
Strokes Per Minute (SPM): 30-45
Hold-Downs - Number: 11
Hold-Downs - Pressure (Tons): 4.2
Front Support: 40Inch
Back Gauge: 24Inch
Top Blade Rake Adjust: Hydraulic Adjustment Rake Angle
Top Blade Rake Angle: 1/2-2 Degrees
Motor: 7.5 hp
Oil Tank Capacity: 35 gallons
Net Weight: 7,000 lbs.
Overall Dimensions (w/o support arm): 118Inch x 48Inch x 65Inch
OPTIONAL ACCESSORIES:
- Angle gauge
- Single axis, NC programmable 32Inch power back gauge.
- Pneumatic-type thin sheet supporter.
- Power back gauge with lifting function.
- 60Inch/80Inch/120Inch front support arm.
- 60Inch/80Inch/120Inch squaring arm with dual scale. |
|---|
|
|---|
| |
| |
|
|
|
|
|
|
