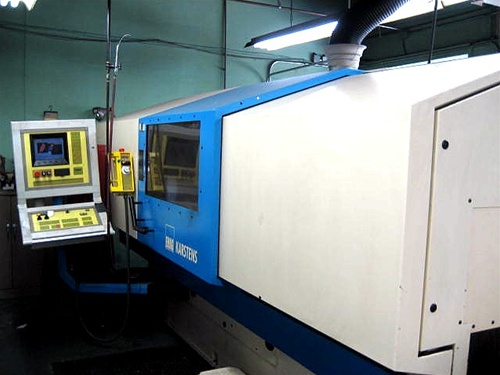

| Estatus: | CERRADO | | Id# | 11369 | | Ref: | 142833 | | Nombre: | 14" Swing 40" Centers Karsten K28 ID/OD CNC OD GRINDER, INTERNAL-EXTERNAL CONTINUOUS PATH | | Fabricante: | Karsten | | Modelo: | K28 | | Año: | ( Usado ) | | Localización: | USA | | Precio: | On Request | | | | |
|---|
| Descripción: | 14" x 40" KARSTENS CNC UNIVERSAL I.D./O.D.
CYLINDRICAL GRINDER
MODEL: K28, MFG.: 1998
FOR EXTERNAL/INTERNAL GRINDING WITH CONTINUOUS PATH CONTROL
EQUIPPED WITH PROGRAMMABLE "B" & "C" AXES OPTIONS
TECHNICAL DATA AND FEATURES:
Swing: 14"
Distance between Centers: 40"
Grinding length: 40"
Max.dia. to be ground: 13.5"
Electrics: 230/460 Volt
3 phase,60Hz
Total installed power with 10 HP spindle motor: 14.5 HP
Net weight of machine, approximately: 10,400 Lbs.
WHEELHEAD:
Grinding Wheel arrangement left hand
Spindle in anti-friction bearings, life time lubricated.
Grinding wheel dia.: 20"
Grinding wheel width, up to: 4"
Grinding wheel bore: 5"
Spindle Motor: 10 HP
Grinding wheel speed 7000 sfpm
Coarse adjustment of wheelhead on air cushion,
clamping with spring-load, unclamping pneumatically
(no hand tools required). Manually swivelling of wheelhead
after unclamping by operating one lever.
WORKHEAD:
Live and dead spindle in anti-friction bearings.
Spindle taper: MT#4
Spindle bore-front: 2-1/2"
Spindle thru bore: .945
Work drive infinitely programmable 25-600 RPM
Workhead can be swiveled on base plate
TAILSTOCK:
On air cushion adjustable
Spindle taper MT#4
Stroke: 1-3/4"
Manual quill retraction.
Spring tension adjustable up to: 176 lbs.
DRESSING DEVICE
Holder for the dressing tool for diamond with shaft MT 0
or diamond dressing blade, (without diamond).
KARSTENS-CNC CONTROL TYPE BWO 900
Modular designed continuout path control
in powerful RISC-processor technology.
Axis interpolation possible in different software channels
Comfortable operation guidance by integrated function keys,
softkeys and data input by numerical key board.
Color-LC-Display, VGA graphic mode
Approaching cycles for automatic setting of reference
points, for dressing and grinding cycles.
NC programming in accordance to DIN 66025 via keyboard
or data in-and output via serial interface (RS232C). |
|---|
|
|---|
| |
| |
|
|
|
|
|
|
